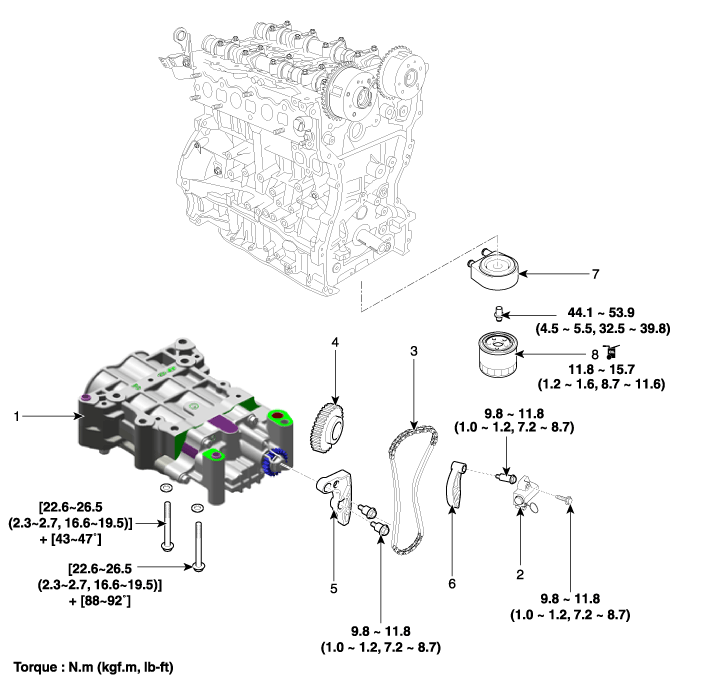

Components

1. Balance shaft & oil pump assembly
2. Balance shaft chain tensioner
3. Balance shaft chain
4. Balance shaft chain sprocket
5. Balance shaft chain guide
6. Balance shaft chain tensioner arm
7. Oil cooler
8. Oil filter
