Kia Sportage: Camshaft Position Sensor (CMPS): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Camshaft Position Sensor (CMPS): Schematic Diagrams

Third generation SL (2010Ц2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS): Schematic Diagrams

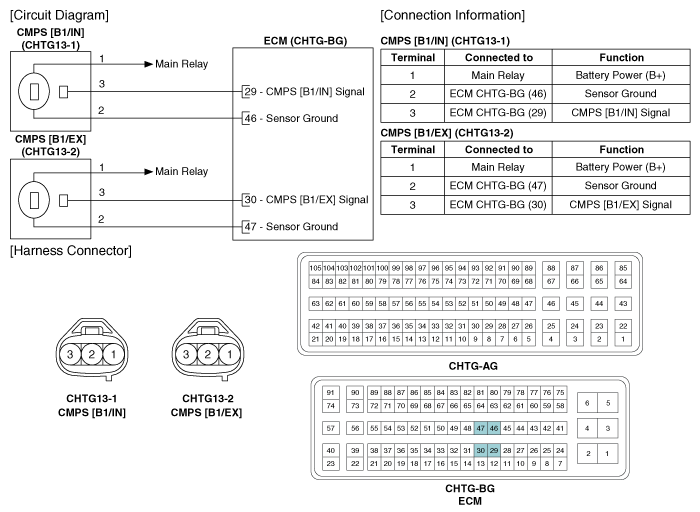

Circuit Diagram

Camshaft Position Sensor (CMPS): Troubleshooting
Wave Form ...

Camshaft Position Sensor (CMPS): Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to УWave FormФ Removal     Х DONТT remove the camshaft ...
