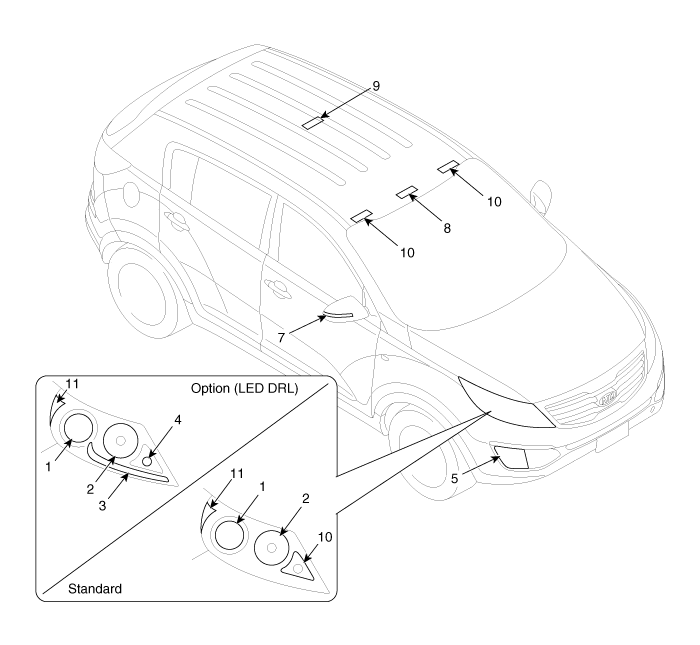

Component Location (1)

1. Head lamp(Low)
2. Head lamp(High)
3. DRL & position LED
4. Front turn signal lamp
5. Front fog lamp
6. Door mirror turn signal lamp (LED)
7. Overhead lamp
8. Room lamp
9. Vanity lamp
10. Turn signal & position lamp
11. Side marker

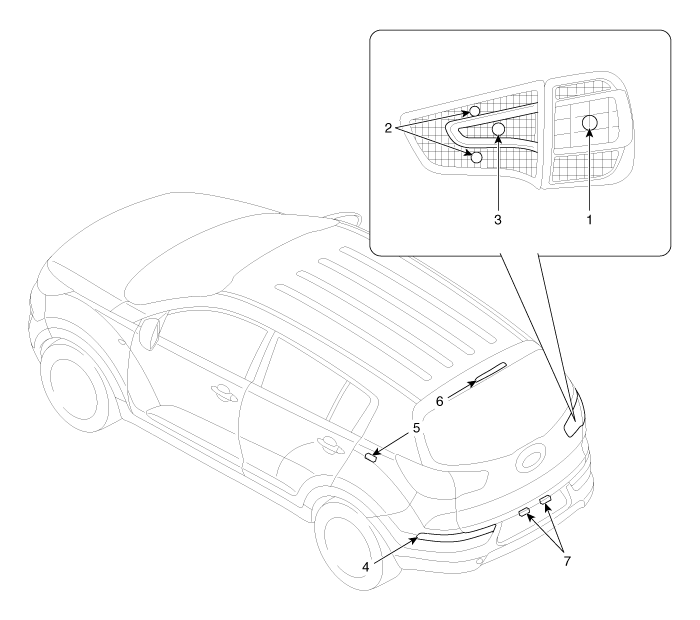

Component Location (2)

1. Tail/Stop lamp
2. Position lamp
3. Back up lamp
4. Rear turn signal lamp
5. Luggage room lamp
6. High mounted stop lamp
7. License plate lamp

Specifications
Specifications ItemsBulb Wattage (W)Front(General)Head lamp (High/Low)55/55Front turn signal lamp28Front position lamp8 or LEDFront fog lamp27Turn signal lamp (Door mirror)LEDRearRear stop lamp ( ...

Head Lamps: Components and Components Location
Component 1. Head lamp assembly lens and housing2. Head lamp(low) bulb3. Dust cap4. Head lamp(high) bulb5. Dust cap6. Turn signal lamp/tail lamp socket7. Turn signal lamp/tail lamp bulb8. Side ma ...
