Kia Sportage: ETC (Electronic Throttle Control) System: Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: ETC (Electronic Throttle Control) System: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System: Schematic Diagrams

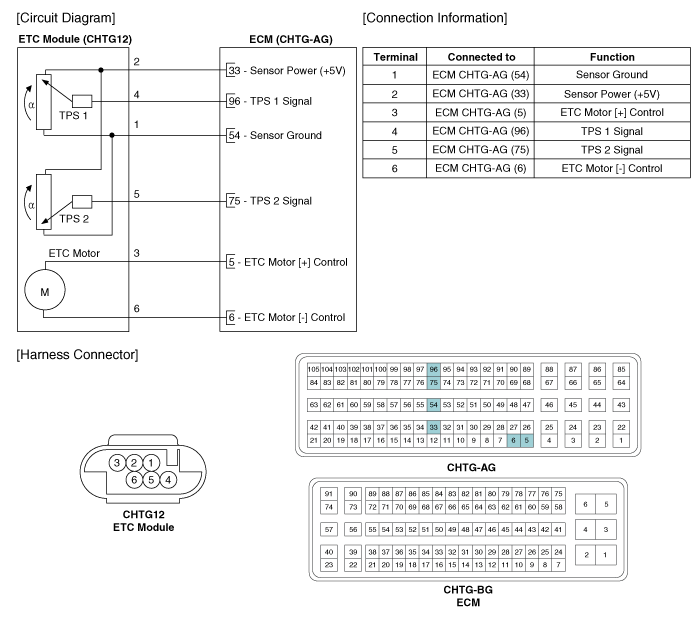

Circuit Diagram

ETC (Electronic Throttle Control) System: Specifications
Specification [Throttle Position Sensor (TPS)] Throttle Angle(°)Output Voltage(V) [Vref = 5.0V]TPS1TPS200.05.0100.484.52200.954.05301.433.57401.903.10502.382.62602.862.14703.331.67803.811.19904. ...

ETC (Electronic Throttle Control) System: Repair procedures
Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T. Specific ...
