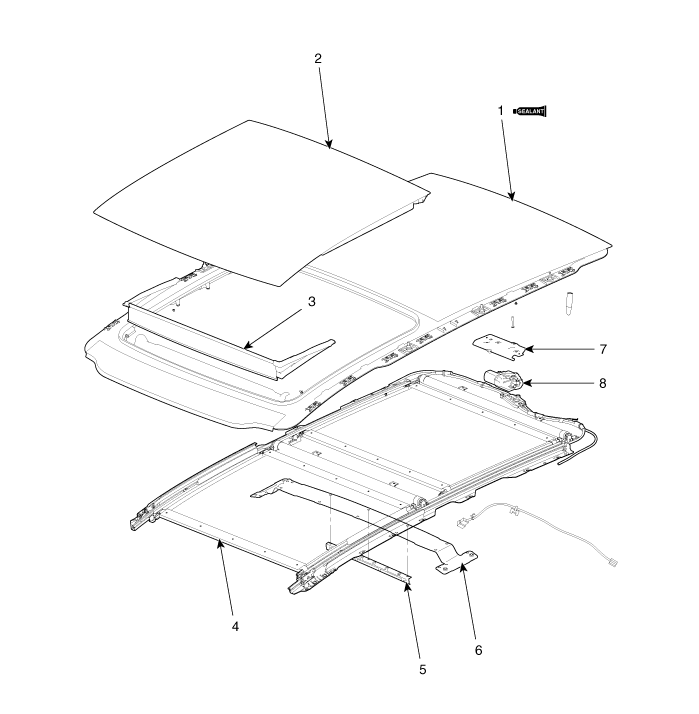

Components

1. Panoramaroof frame assembly
2. Movable glass assembly
3. Wind deflector assembly
4. Mechanism assembly
5. Impact bracket
6. Impact cross member assembly
7. EMC metal sheet
8. Motor assembly
