Kia Sportage: Schematic Diagrams - General Information - Emission Control System - Kia Sportage SL Service & Repair ManualKia Sportage: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Emission Control System / General Information / Schematic Diagrams

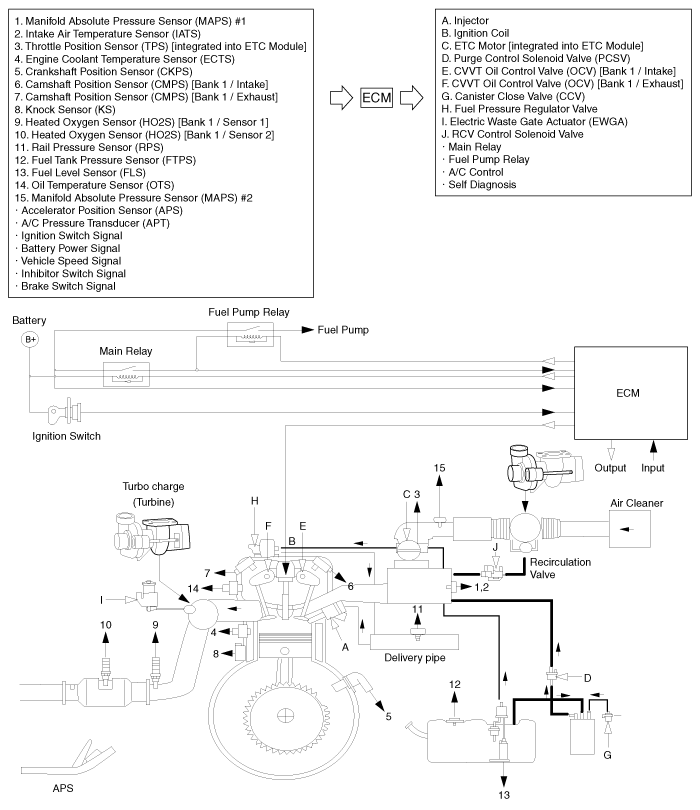

Schematic Diagram

Troubleshooting
Troubleshooting SymptomSuspect areaEngine will not start or struggle to startVapor hose damaged or disconnectedEngine struggles to startMalfunction of the Purge Control Solenoid ValveRough idle o ...

Components and Components Location
Components Location 1. PCV valve2. Canister3. Purge control solenoid valve (PCSV)4. Fuel tank pressure sensor (FTPS)5. Canister close valve (CCV)6. Fuel level sensor (FLS)7. Fuel tank air filt ...
