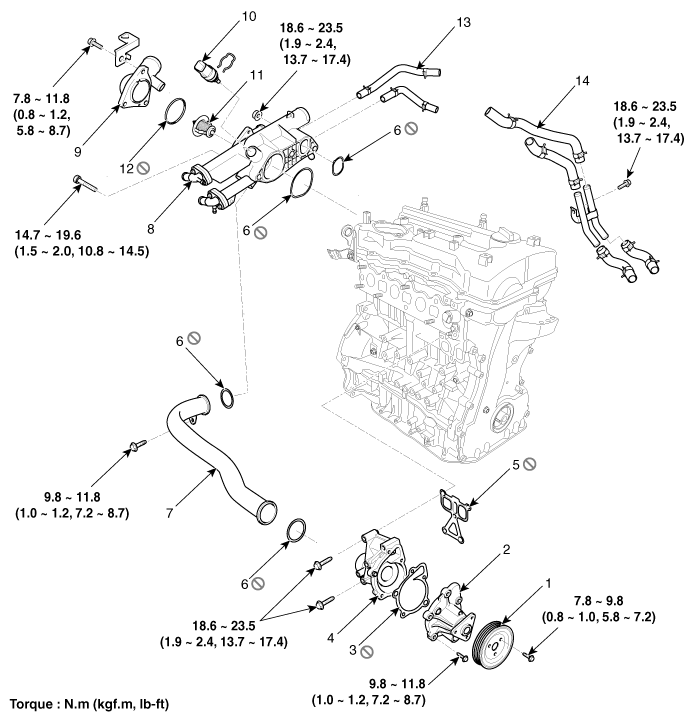

Components

1. Water pump pulley
2. Water pump sub assembly
3. Water pump gasket
4. Water pump cover
5. Water pump cover gasket
6. O-ring
7. Water inlet pipe
8. Water temperature control assembly
9. Water inlet fitting
10. Engine coolant temperature sensor
11. Thermostat
12. Thermostat gasket
13. Throttle body coolant hoses
14. Oil cooler coolant hoses
