Kia Sportage: Audio Unit: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Audio / Audio Unit: Components and Components Location
| Components |

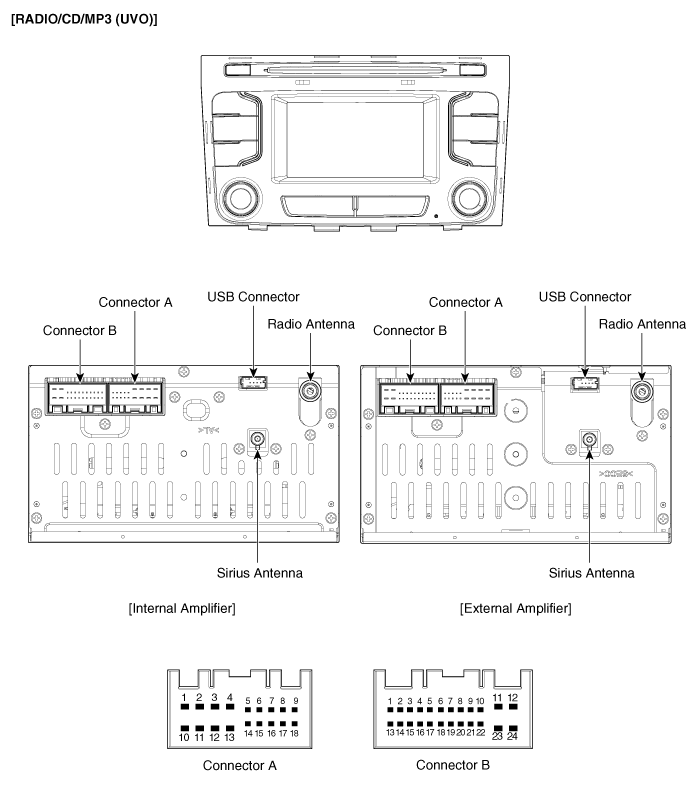

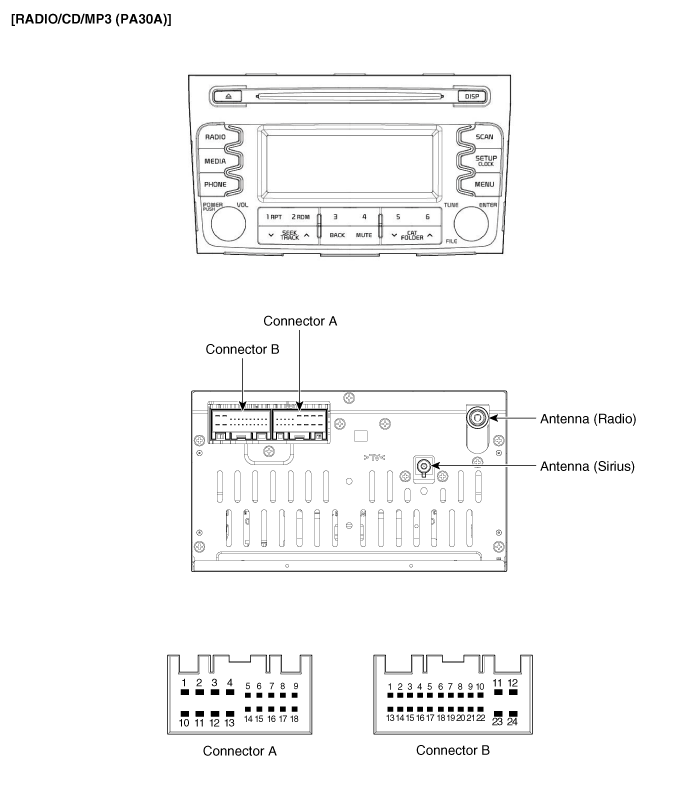

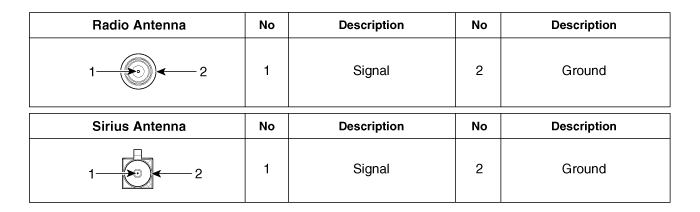

Connector Pin Information
| No. | Connector A | Connector B |
| 1 | Speaker RL (+) | MM CAN HIGH |
| 2 | Speaker FL (+) | - |
| 3 | Speaker FR (+) | - |
| 4 | Speaker RR (+) | Steering Remote |
| 5 | - | - |
| 6 | - | USB D (+) |
| 7 | - | USB/iPOD VDD |
| 8 | Illumination (+) | AUX Input R |
| 9 | DETENT | AUX GND |
| 10 | Speaker RL (-) | MIC (+) |
| 11 | Speaker FL (-) | ACC |
| 12 | Speaker FR (-) | Battery (+) |
| 13 | Speaker RR (-) | MM CAN LOW |
| 14 | - | - |
| 15 | - | - |
| 16 | - | Vehicle Speed |
| 17 | Illumination (-) | Remote GND |
| 18 | Remote Antenna | USB D (-) |
| 19 | ? | USB/iPOD GND |
| 20 | AUX Detect | |
| 21 | AUX Input L | |
| 22 | MIC (-) | |
| 23 | - | |
| 24 | Power GND |

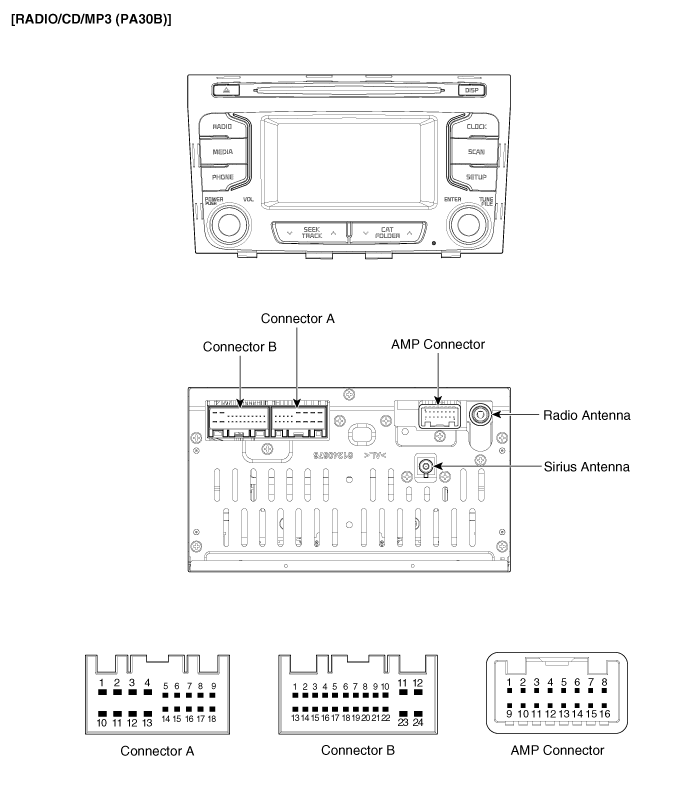

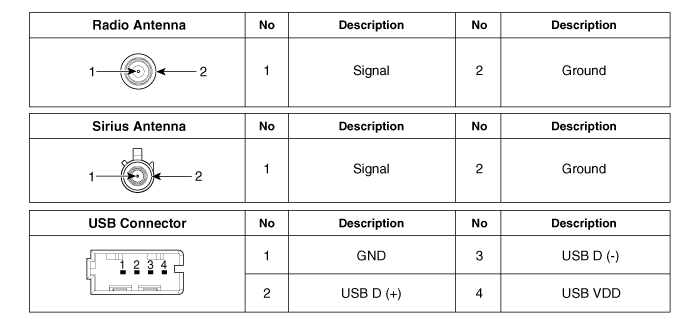

Connector Pin Information
| No. | Connector A | Connector B | AMP Connector |
| 1 | Speaker RL (+) | CAN HIGH | - |
| 2 | Speaker FL (+) | - | - |
| 3 | Speaker FR (+) | - | Camera GND |
| 4 | Speaker RR (+) | Steering Remote | Camera VIN |
| 5 | - | - | - |
| 6 | - | USB D (+) | - |
| 7 | - | USB/iPOD VDD | - |
| 8 | Illumination (+) | AUX Input R | - |
| 9 | - | AUX GND | - |
| 10 | Speaker RL (-) | MIC (+) | Camera Battery (+) |
| 11 | Speaker FL (-) | ACC | P GND |
| 12 | Speaker FR (-) | Battery (+) | R Position |
| 13 | Speaker RR (-) | CAN LOW | - |
| 14 | - | - | - |
| 15 | - | Auto Light | - |
| 16 | - | Vehicle Speed | - |
| 17 | Illumination (-) | Remote GND | ? |
| 18 | Remote Antenna | USB D (-) | |
| 19 | ? | USB/iPOD GND | |
| 20 | AUX Detect | ||
| 21 | AUX Input L | ||
| 22 | MIC (-) | ||
| 23 | - | ||
| 24 | Power GND |
Connector Pin Information
| No | Connector A | Connector B | ||
| Internal Amplifier | External Amplifier | Internal Amplifier | External Amplifier | |
| 1 | Speaker RL (+) | - | CAN High | CAN High |
| 2 | Speaker FL (+) | - | - | - |
| 3 | Speaker FR (+) | - | - | - |
| 4 | Speaker RR (+) | - | Steering Remote | Steering Remote |
| 5 | - (SPDIF_GND) | SPDIF_GND | - (Rear Remote) | - (Rear Remote) |
| 6 | - (SPDIF_DN) | SPDIF_DN | Camera VIN | Camera VIN |
| 7 | - (IGN) | - (IGN) | Camera Battery (+) | Camera Battery (+) |
| 8 | Illumination (+) | Illumination (+) | AUX Input R | AUX Input R |
| 9 | - | - | AUX GND | AUX GND |
| 10 | Speaker RL (-) | - | MIC (+) | MIC (+) |
| 11 | Speaker FL (-) | - | ACC | ACC |
| 12 | Speaker FR (-) | - | Battery (+) | Battery (+) |
| 13 | Speaker RR (-) | - | CAN Low | CAN Low |
| 14 | - | - | - | - |
| 15 | - (SPDIF_DP) | SPDIF_DP | Auto Light | Auto Light |
| 16 | Door Unlock | Door Unlock | Speed IN | Speed IN |
| 17 | Illumination (-) | Illumination (-) | Remote GND | Remote GND |
| 18 | Remote Antenna | Remote Antenna | Camera V_GND | Camera V_GND |
| 19 | ? | ? | Camera REQ | Camera REQ |
| 20 | AUX Detect | AUX Detect | ||
| 21 | AUX Input L | AUX Input L | ||
| 22 | MIC (-) | MIC (-) | ||
| 23 | Camera P_GND | Camera P_GND | ||
| 24 | Power GND | Power GND | ||
Components and Components Location
Component Location

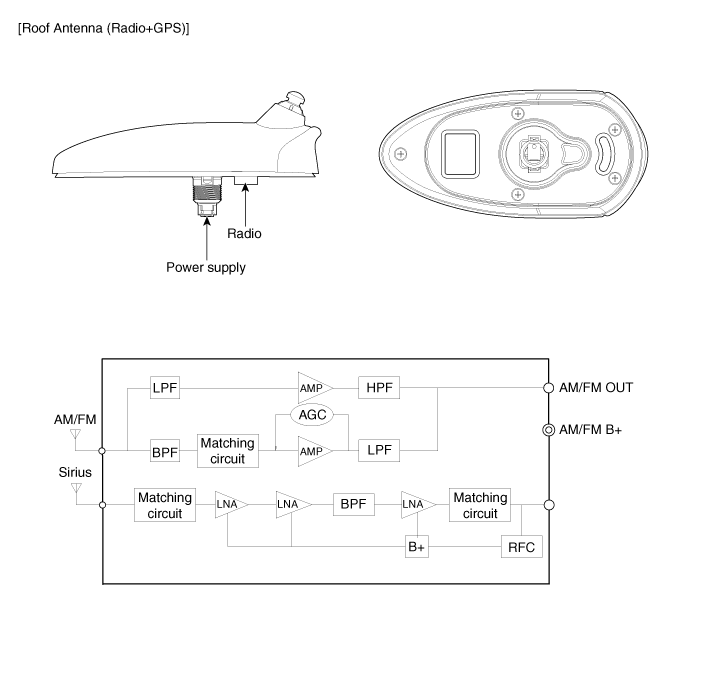

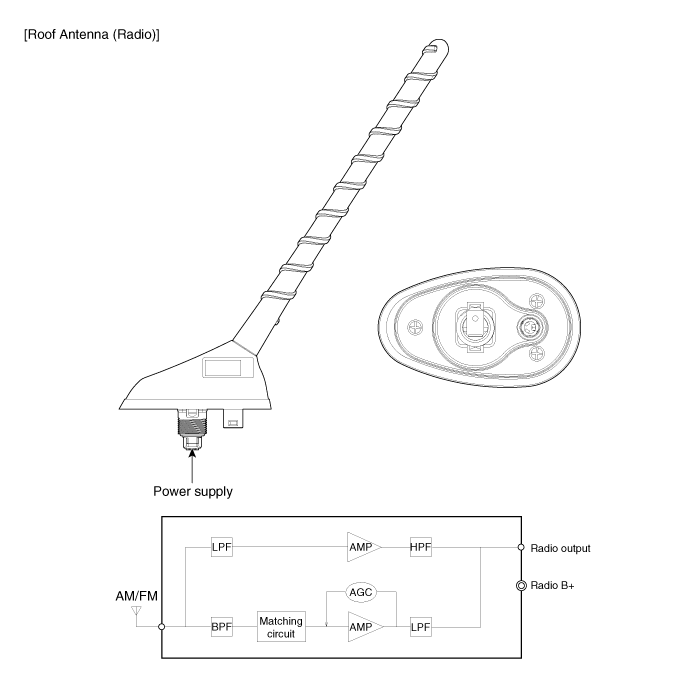

1. Audio unit2. Tweeter speaker3. External amplifier4. Roof antenna (Radio)5. Front door speaker6. Rear door speaker7. Sub woofer speaker8. Antenna feeder cable9. Antenna cable ...
Audio Unit: Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad passenger''s garnish (A).
(Refer to BD group - "Crash pad")
3.
Disconnect the connectors and remove the cl ...
