Kia Sportage: Brake Booster: Components and Components Location - Brake System - Brake System - Kia Sportage SL Service & Repair ManualKia Sportage: Brake Booster: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Brake System / Brake System / Brake Booster: Components and Components Location

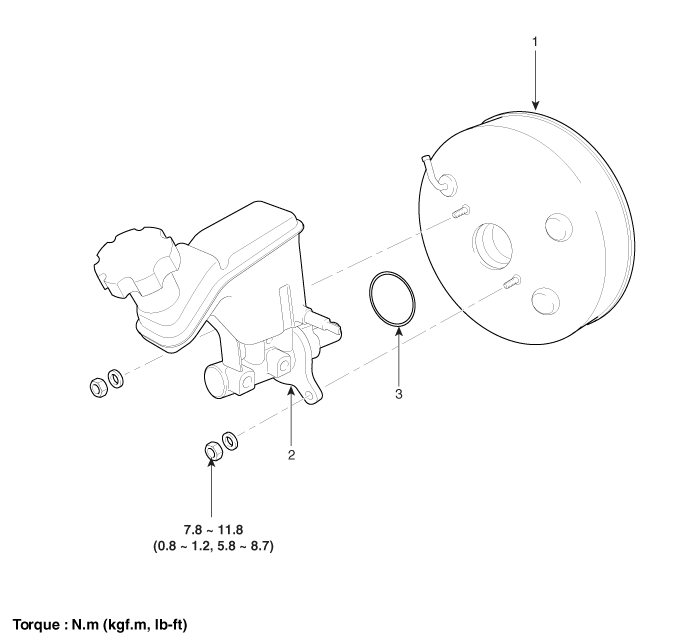

Components (1)

1. Brake booster
2. Master cylinder assembly
3. O-ring

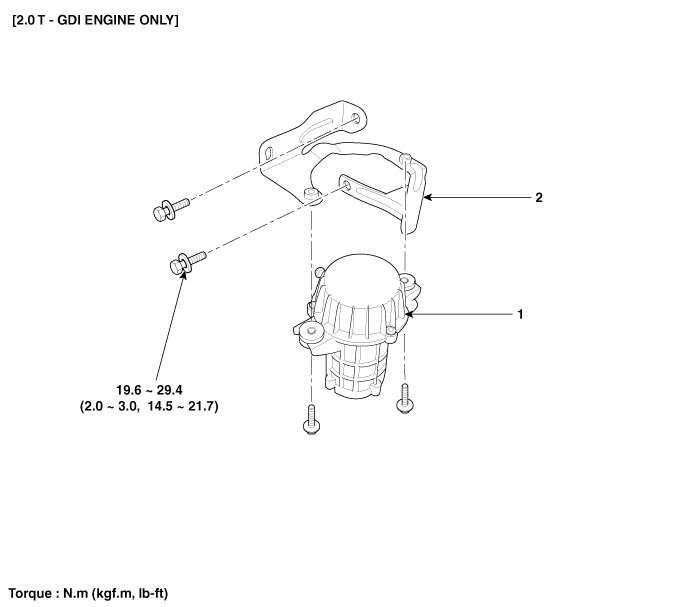

Components (2)

1. Vacuum pump
2. Bracket

Repair procedures
Operation and Leakage Check Check all of the following items: ComponentProcedureBrake Booster (A)Check brake operation by applying the brakes during a test drive. If the brakes seem hard to ...

Brake Booster: Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...
