Kia Sportage: Climate Seat: Schematic Diagrams - Seat Electrical - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Climate Seat: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Seat Electrical / Climate Seat: Schematic Diagrams

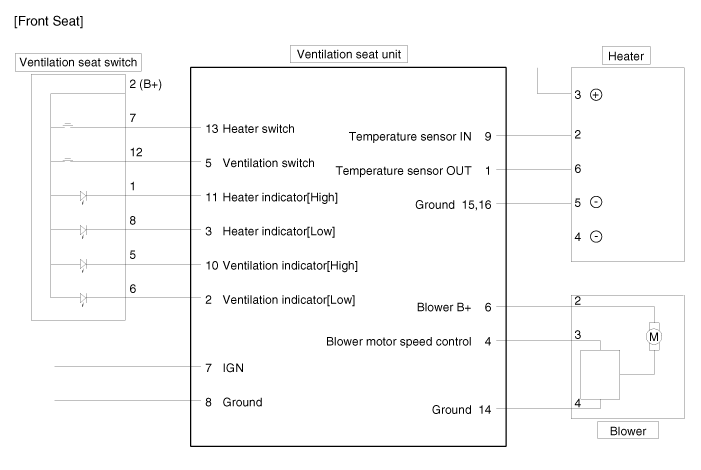

Schematic Diagram

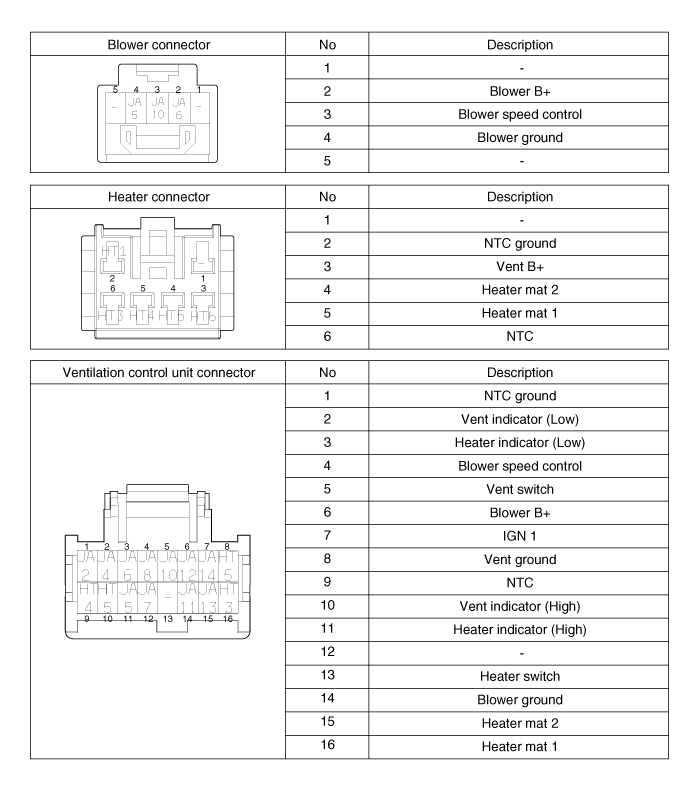

Connector Configurations

Climate Seat: Components and Components Location
Components 1. Ventilation blower2. Ventilation ECU3. Ventilation seat switch4. Blower connector5. Heater connector6. Ventilation ECU connector ...

Climate Seat: Description and Operation
Description The system uses a FAN under the seat to help remove the moisture and warmth from occupants and surface of the seats. It pulls in cabin air through the blower installed under the seat ...

Other Information:

Climate Control Air Filter: Description and Operation
Description This has particle filter which eliminates foreign materials and odor. The particle filter includes odor filter as well as conventional dust filter to ensure comfortable interior en ...

Rear window defroster
The defroster heats the window to remove frost, fog and thin ice from the rear window, while the engine is running. To activate the rear window defroster, press the rear window defroster button ...
