Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Heating,Ventilation, Air Conditioning / Air Conditioning System / Components and Components Location
| Component Location Index |
| Engine Room |

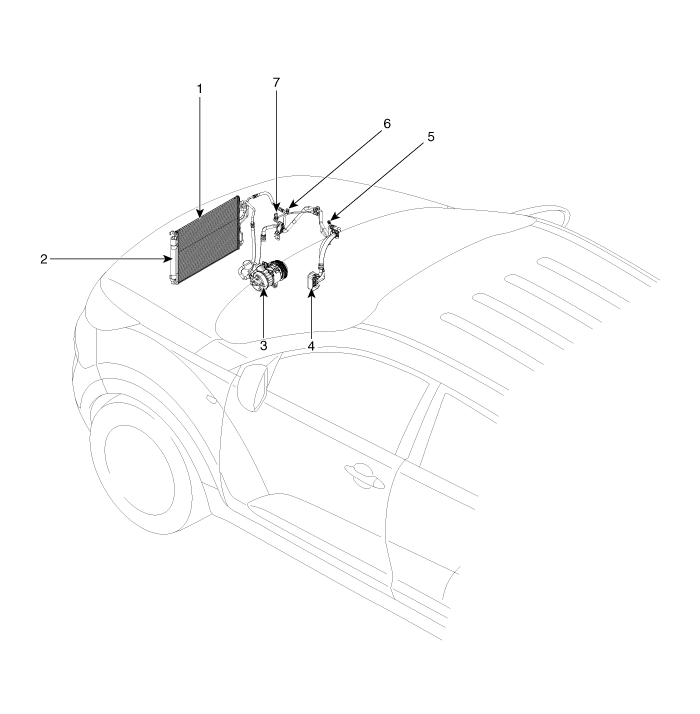

| 1. Condenser 2. Receiver-drier 3. Compressor 4. Expansion Valve | 5. Service port (High) 6. Service port (Low) 7. A/C Pressure Transducer |
