Components Location

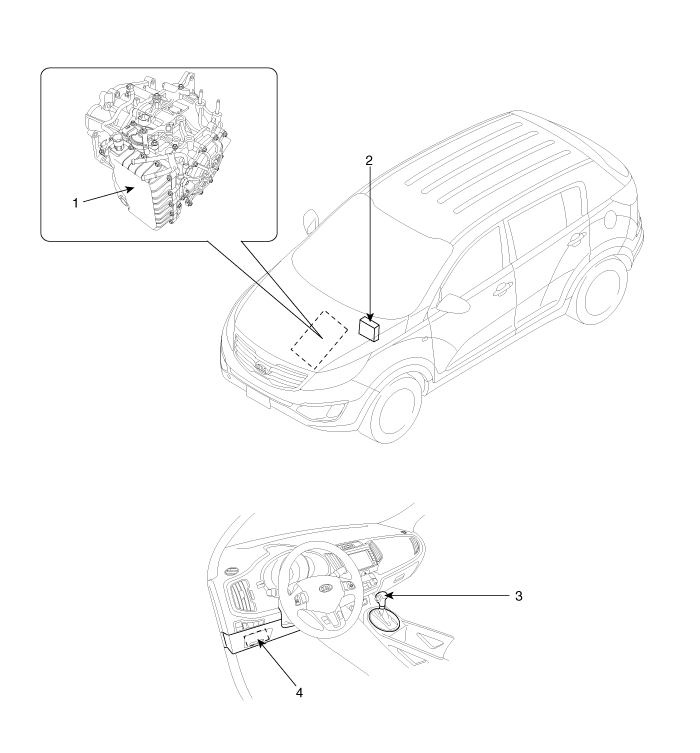

[Vehicle Components]

1. Automatic transaxle
2. Transaxle control module (TCM)
3. Shift lever
4. DLC

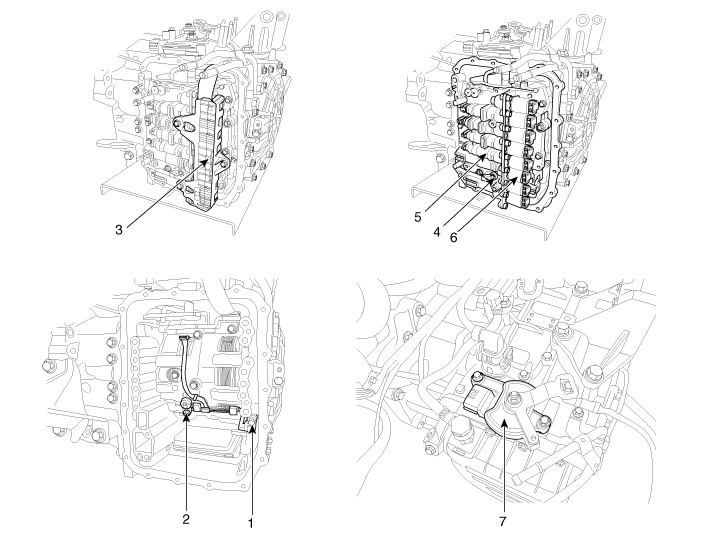

[Transaxle Components]

1. Input speed sensor
2. Output speed sensor
3. Solenoid valve connect
4. Oil temperature sensor
5. Valve body assembly
6. Solenoid valve
7. Inhibitor switch

Schematic Diagrams
Circuit Diagram ...
