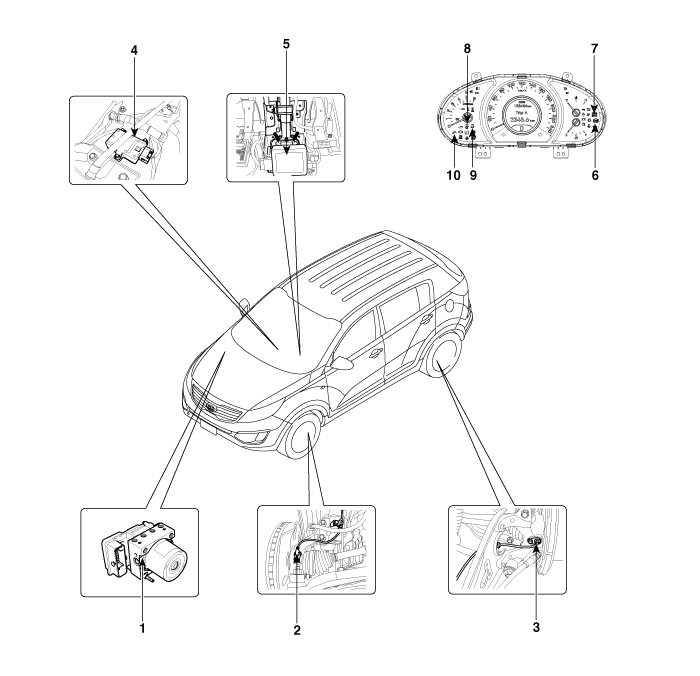

Components

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Yaw rate & Lateral & Longitudinal G sensor
5. Steering angle sensor
6. ABS Warning lamp
7. Parking brake/EBD warning lamp
8. ESC OFF lamp
9. ESC Function/Warning lamp
10. DBC warning lamp
