Kia Sportage: CVVT Oil Control Valve (OCV): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: CVVT Oil Control Valve (OCV): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV): Schematic Diagrams

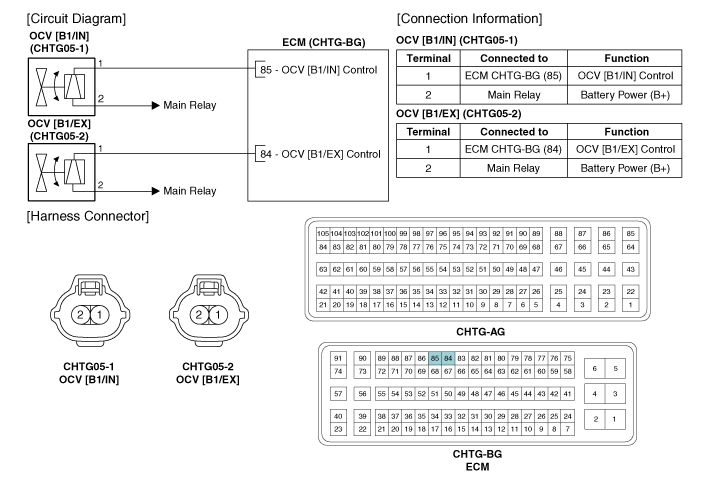

Circuit Diagram

CVVT Oil Control Valve (OCV): Specifications
Specification ItemSpecificationCoil Resistance (?)6.9 ~ 7.9 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV): Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4. Check that the resistance is within the specifi ...
