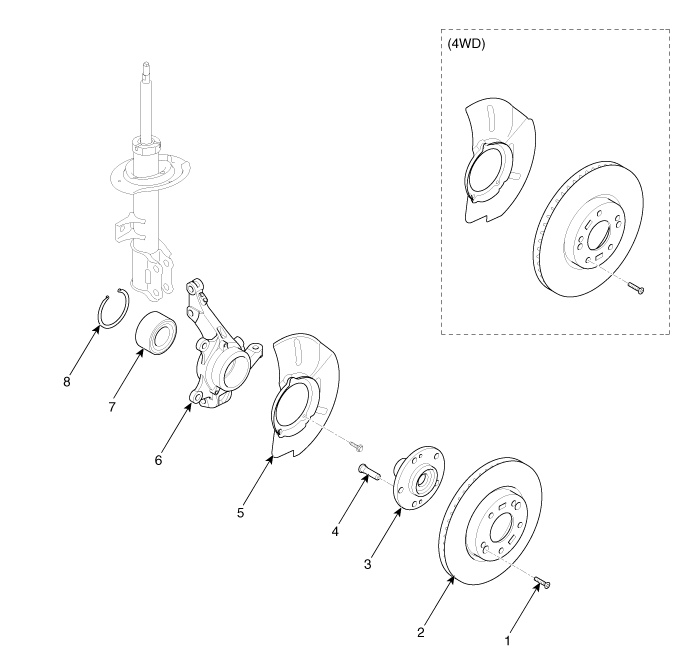

Components

1. Brake disc screw
2. Brake disc
3. Hub
4. Hub bolt
5. Dust cover
6. Knuckle
7. Wheel bearing
8. Snap ring
