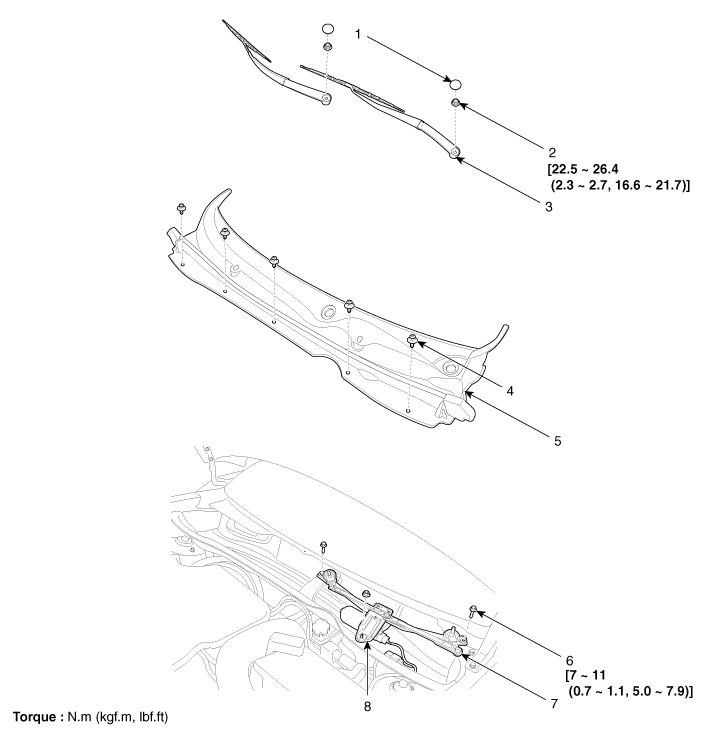

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Clip
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector
