Kia Sportage: Input Speed Sensor: Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sportage SL Service & Repair ManualKia Sportage: Input Speed Sensor: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor: Schematic Diagrams

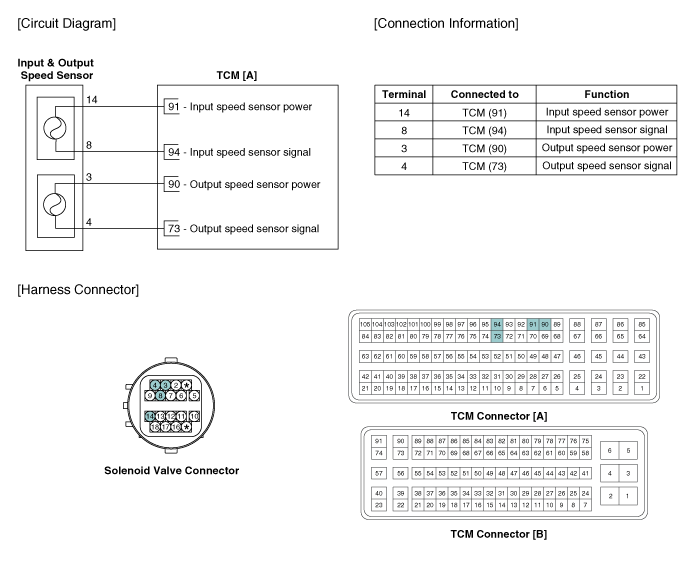

Circuit Diagram

Input Speed Sensor: Specifications
Specifications ? Type: Hall effect sensor Operation condition (°C)°F((-)40~150)) -40~302Air gap (mm)in.(0.95~1.65) 0.0374~0.0649Output voltage(V)High1.18 ~ 1.68Low0.59 ~ 0.84 ...

Input Speed Sensor: Troubleshooting
Signal Waveform Fig 1) Input/Output speed sensor at low speed Fig 2) Input/Output speed sensor at high speed ...
