Kia Sportage: Power window lock button

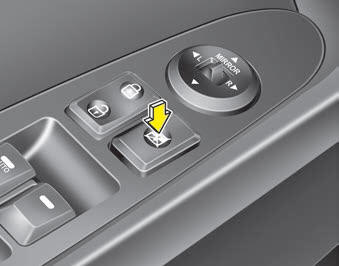

The driver can disable the power window switches on the front and rear passengers' doors by pressing the power window lock switch to lock position (pressed).
When the power window lock switch is pressed, the driver's master control cannot operate the front and rear passengers' power windows.
CAUTION - Opening / closing Window
To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.
WARNING - Power windows
Do not allow children to play with the power windows. Keep the driver’s door power window lock switch in the LOCK position (pressed).
Always double check to make sure all arms, hands, head and other obstructions are safely out of the way before closing a window.
Window opening and closing
Type A
The driver’s door has a master power window switch that controls all the windows
in the vehicle.
To open or close a window, press down or pull up the front portion of the corresponding
...
Hood
...
