Kia Sportage: Purge Control Solenoid Valve (PCSV): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Purge Control Solenoid Valve (PCSV): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV): Schematic Diagrams

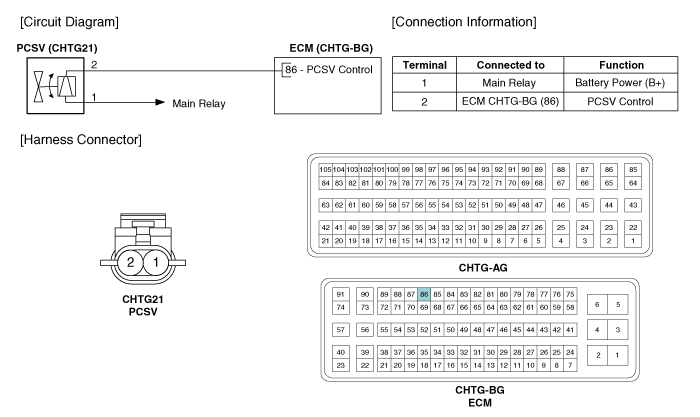

Circuit Diagram

Purge Control Solenoid Valve (PCSV): Specifications
Specification ItemSpecificationCoil Resistance (?)19.0 ~ 22.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV): Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV terminals 1 and 2. 4. Check that the resistance is within the speci ...
