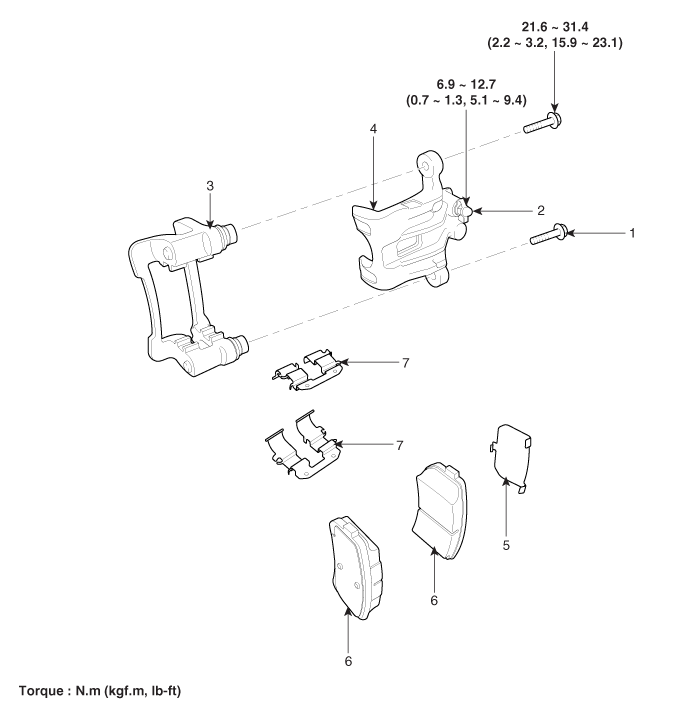

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper bracket
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer

Front Disc Brake: Repair procedures
Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) 2. Loosen the hose eyebolt (B) and caliper mounting bolts (C), then ...

Rear Disc Brake: Repair procedures
Removal 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~107.9 N.m(9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) 2. Remove the rear shock absorber (A). [2WD Only] (Refer to the Susp ...
