Kia Sportage: Rear Parking Assist System Control Unit: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Rear Parking Assist System / Rear Parking Assist System Control Unit: Components and Components Location

Rear Parking Assist System Control Unit: Specifications

Specifications DescriptionSpecificationUltrasonic sensorDetecting range9.8~47.2 in (250 ~ 1,200 mm)Operating voltageDC 8~10 VRated currentMAX. 20 mAOperating temperature -22°F~+176°F(-30° ...

Rear Parking Assist System Control Unit: Description and Operation

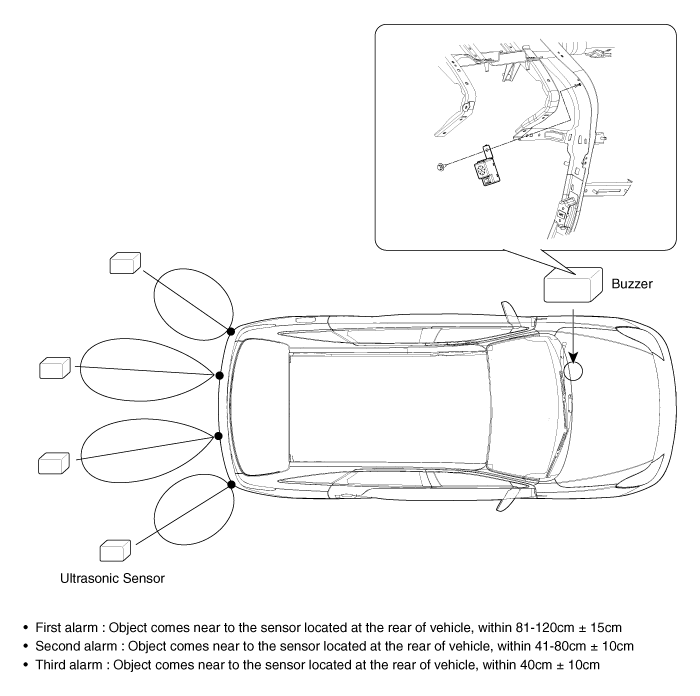

Description When reversing, the driver is not easy to find objects in the blind spots and to determine the distance from the object. In order to provide the driver safety and convenience, back ...

Other Information:

Schematic Diagrams
Circuit Diagram - ESC(1) Circuit Diagram - ESC(2) Circuit Diagram - ESC(3) ESC connector input/output Connector TerminalSpecificationRemarkNoDescription29IGNITION1(+)High level of wake up vol ...

Transaxle Control Module (TCM): Description and Operation
Description Transaxle Control Module (TCM) is the automatic transmission''s brain. The module receives and processes signals from various sensors and implements a wide range of transmission con ...
