Kia Sportage: Rear window wiper blade

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Maintenance / Wiper blades / Blade replacement / Rear window wiper blade

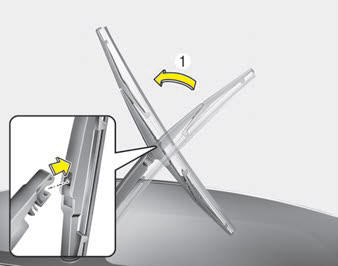

1.Raise the wiper arm and pull out the wiper blade assembly.

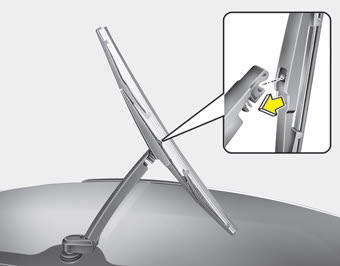

2.Install the new blade assembly by inserting the center part into the slot in the wiper arm until it clicks into place.

3.Make sure the blade assembly is installed firmly by trying to pull it slightly.

To prevent damage to the wiper arms or other components, have an authorized Kia dealer replace the wiper blade.
