Kia Sportage: Sunvisor
Use the sunvisor to shield direct light through the front or side windows.
To use the sunvisor, pull it downward.

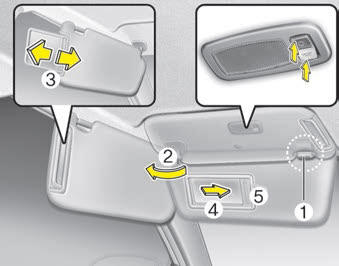

To use the sunvisor for the side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
Adjust the sunvisor extension forward or backward (3). (if equipped)
To use the vanity mirror, pull down the visor and slide the mirror cover (4).
The ticket holder (5) is provided for holding a tollgate ticket. (if equipped)
* The actual sunvisor lamp in the vehicle may differ from the illustration.
CAUTION - Vanity mirror lamp (if equipped)
Close the vanity mirror cover securely and return the sunvisor to its original position after use. If you use the vanity mirror lamp, turn off the lamp before returning the sunvisor to its original position, otherwise it could result in battery discharge and possible sunvisor damage.
