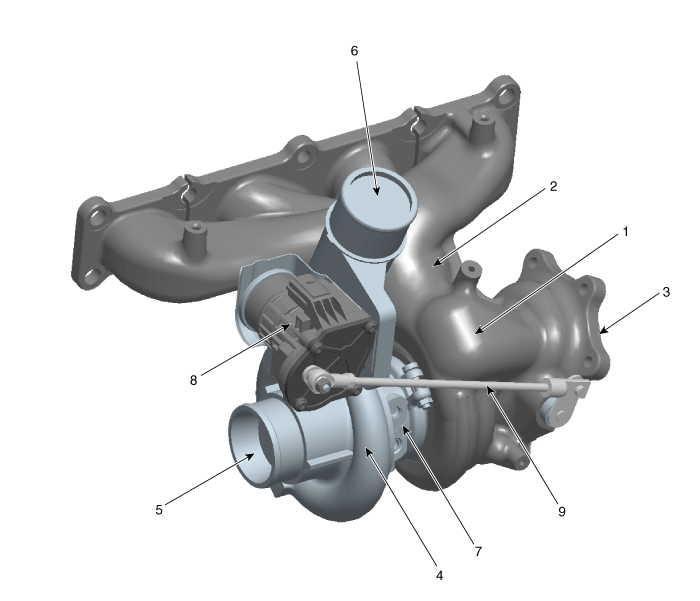

Components

1. Turbine housing
2. Turbine inlet
3. Turbine outlet
4. Compressor housing
5. Compressor inlet
6. Compressor outlet
7. Center housing
8. EWGA (Electric Waste Gate Actuator)
9. Actuator rod
