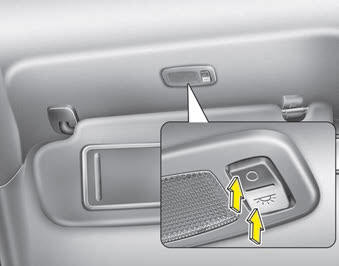

: The lamp will turn on if this
button is pressed.
: The lamp will turn off if this
button is pressed.
✽ NOTICE
Turn off the lamp before return the sunvisor to its original position.
