Kia Sportage: AUX(Auxiliary) Jack: Schematic Diagrams - Audio - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: AUX(Auxiliary) Jack: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Audio / AUX(Auxiliary) Jack: Schematic Diagrams

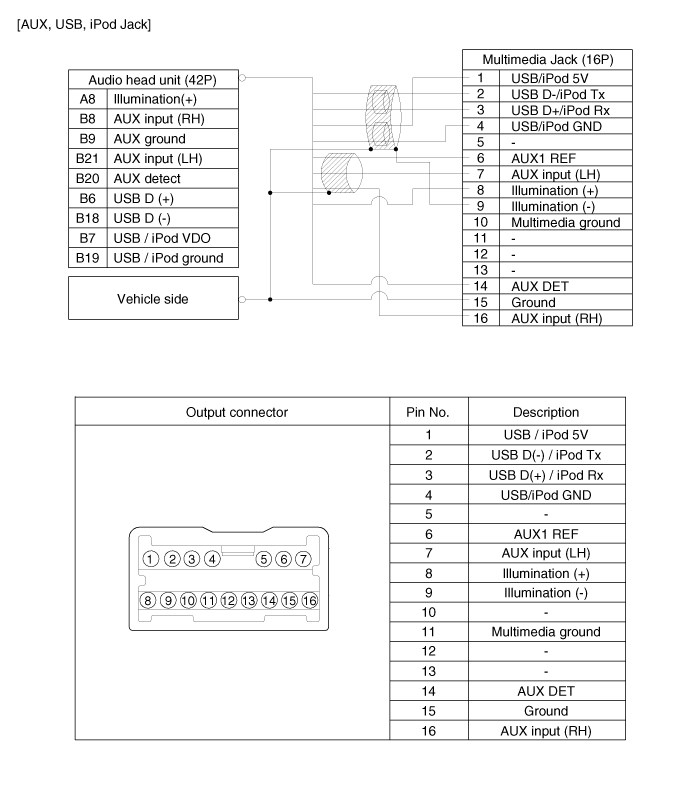

Circuit Diagram
