Kia Sportage: Blower Unit: Components and Components Location - Blower - Heating,Ventilation, Air Conditioning - Kia Sportage SL Service & Repair ManualKia Sportage: Blower Unit: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Heating,Ventilation, Air Conditioning / Blower / Blower Unit: Components and Components Location

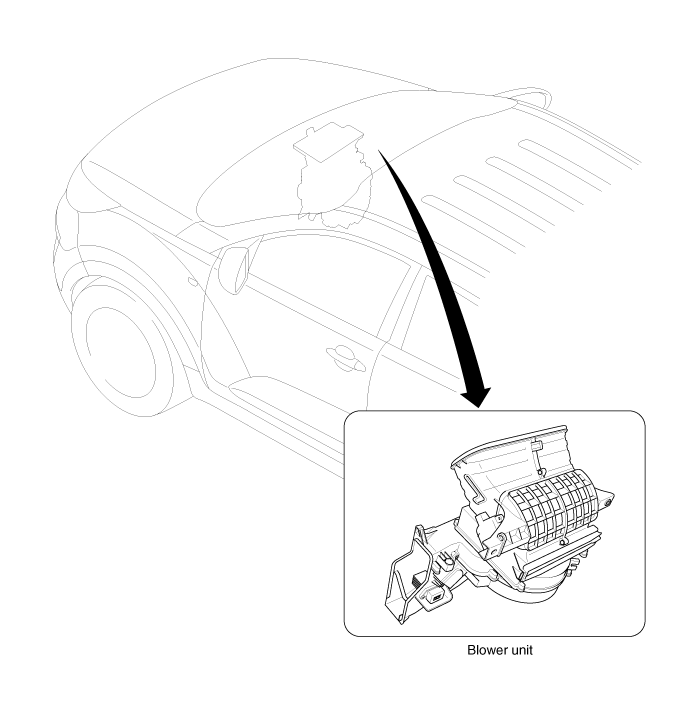

Component Location

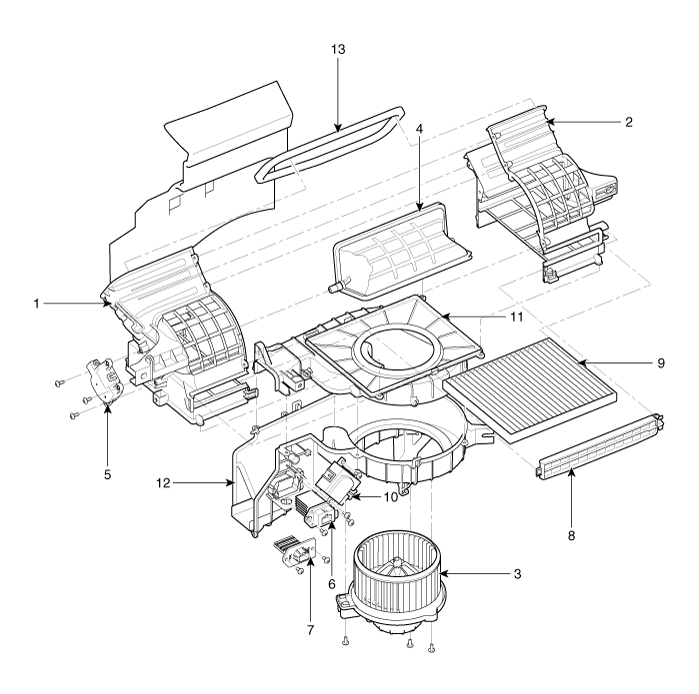

Components

1. Intake case (LH)
2. Intake case (RH)
3. Blower motor
4. Intake door
5. Intake actuator
6. Mofet [Auto type]
7. Resistor [Manual type]
8. Climate control air filter cover
9. Climate control air filter
10. Ionizer
11. Blower case (Upper)
12. Blower case (Lower)
13. Intake seal

Blower
...

Blower Unit: Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad and heater blower unit. (Refer to HA group - "Heater Unit") 3. Remove the heater blower unit (A) fro ...
