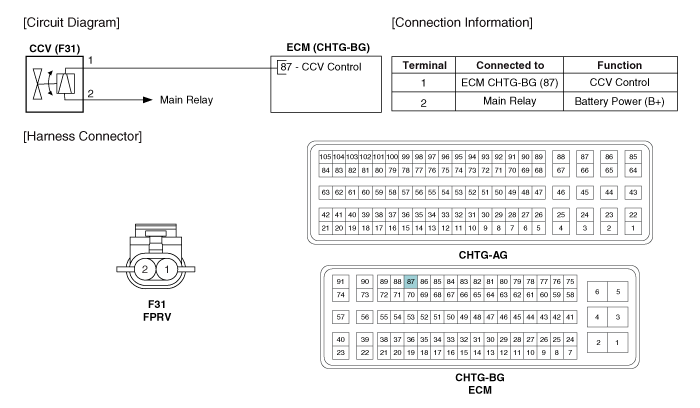

Kia Sportage: Canister Close Valve (CCV): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Canister Close Valve (CCV): Schematic Diagrams

Canister Close Valve (CCV): Specifications

Specification ItemSpecificationCoil Resistance (?)19.9 ~ 22.9 [20°C(68°F)] ...

Canister Close Valve (CCV): Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the CCV connector. 3. Measure resistance between the CCV terminal 1 and 2. 4. Check that the resistance is within the specific ...

Other Information:

SS-A Solenoid Valve(ON/OFF): Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). 3. Remove the air cleaner assembly. (1) Disconnect the breather hose (A) and brake booster intensifier hose. (2) ...
