Use the cargo security screen to hide items stored in the cargo area.

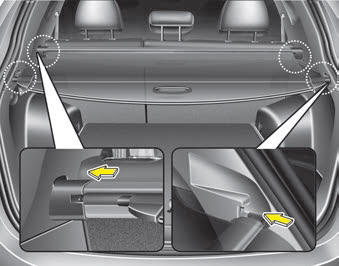

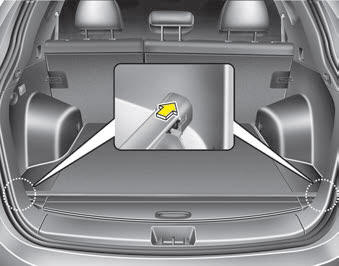

To use the cargo security screen, pull the handle backward and insert the edges into the slots.

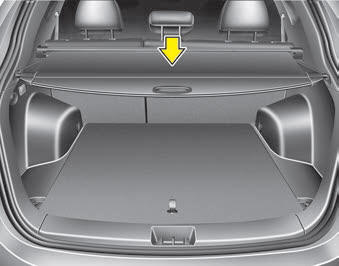

When not in use, place the cargo security screen on the lower portion of the cargo area.
WARNING - Cargo security screen
Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when braking.
CAUTION
Since the cargo security screen may be damaged or malformed, do not put the luggage on it when it is used.
With central door lock switch
Driver’s door
Passenger’s door
Operate by pressing the central door lock switch.
When pressing the front portion (1) of the switch, all vehicle doors will
lock.
When pressing the rear p ...
Heater & A/C Control Unit(Full Automatic): Components and Components Location
Component
Connector Pin Function
ConnectorPin NOFunctionConnectorPin NOFunctionConnector(A)1BatteryConnector(B)1CAN (LOW)2Tail Lamp (ILL+)2CAN (HIGH)3IG23Intake Actuator (F/B)4DR Temp Actuator ( ...
