Kia Sportage: Luggage net holder

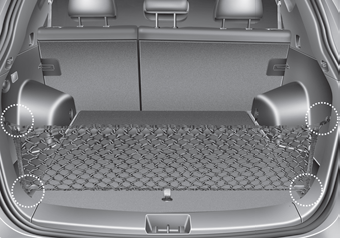

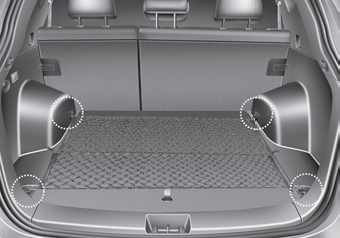

To keep items from shifting in the cargo area, you can use the holders located in the cargo area to attach the luggage net.
If necessary, contact your authorized Kia dealer to obtain a luggage net.
WARNING - Luggage net
Always keep your face and body out of the luggage net recoil path and avoid using the luggage net when the straps have visible signs of wear or damage. The luggage net can snap and cause injuries.
