Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Horn / Components and Components Location
| Component Location |

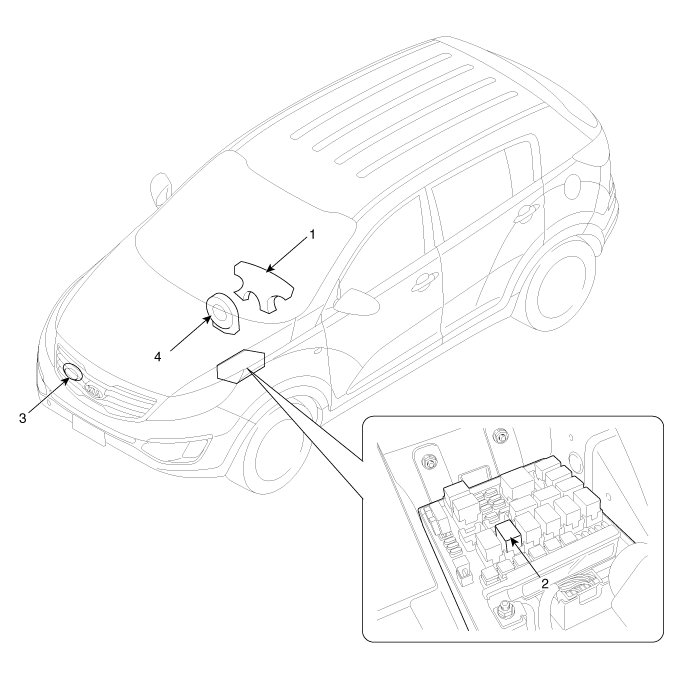

| 1. Horn switch 2. Horn relay (Engine room compartment) | 3. Horn (Low pitch) 4. Clock spring |
Horn
...
Repair procedures
Removal
1.
Remove the radiator upper cover.
(Refer to the BD group - "Front bumper")
2.
Remove the bolt and disconnect the horn connector, then remove the low pitch horn (A).
Installation
...
Other Information:
Repair procedures
Removal
1.
Remove the radiator upper cover.
(Refer to the BD group - "Front bumper")
2.
Remove the bolt and disconnect the horn connector, then remove the low pitch horn (A).
Installation
...
Brake Pedal: Components and Components Location
Components
1. Cowl bracket2. Brake pedal member assembly3. Stop lamp switch4. Return spring5. Brake pedal stopper6. Clevis pin7. Snap pin8. Brake pedal
...
