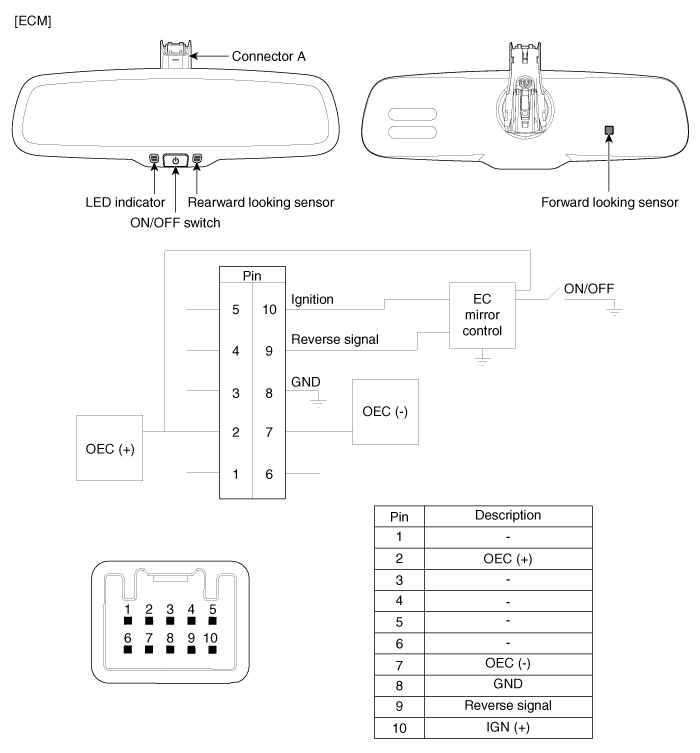

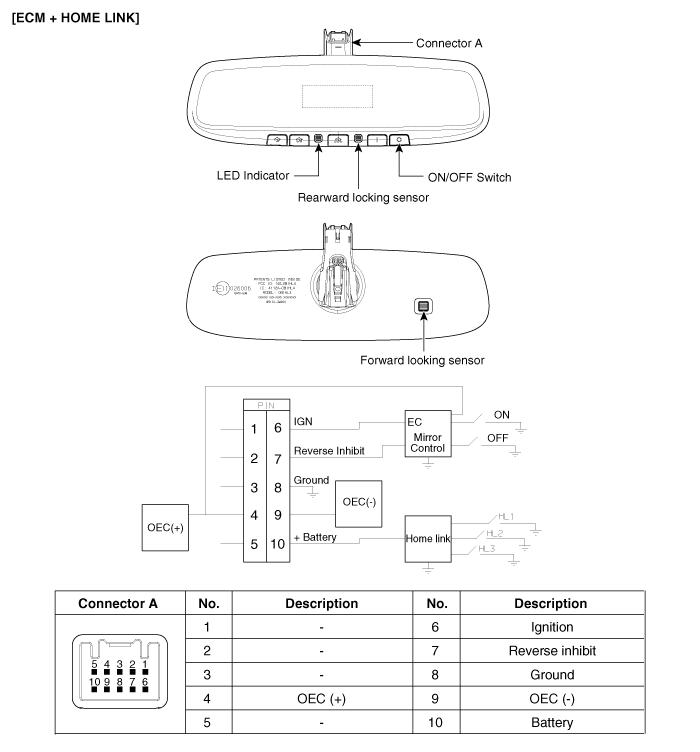

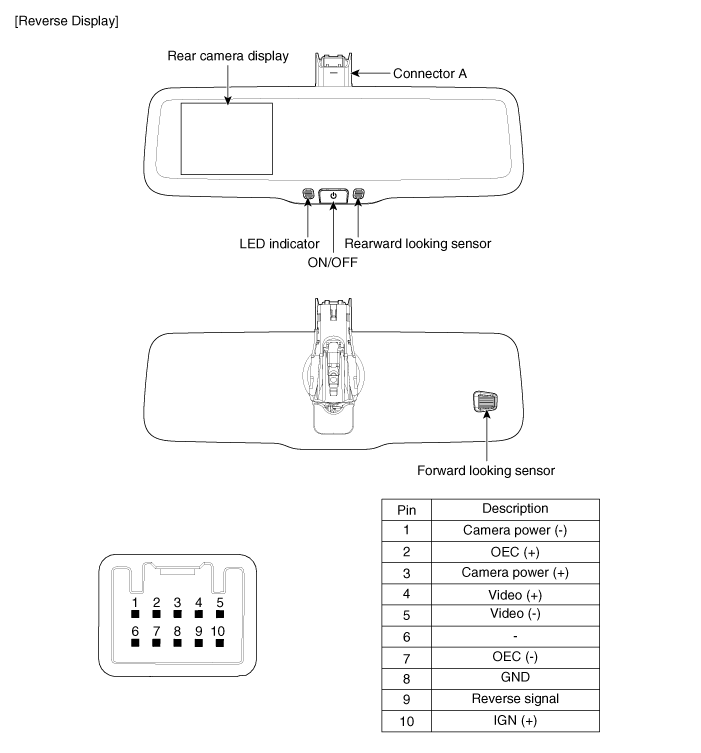

Kia Sportage: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Electro chromic Inside Rear View Mirror / Components and Components Location

Electro chromic Inside Rear View Mirror

...
