Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Suspension System / Rear Suspension System / Components and Components Location
| Components Location |

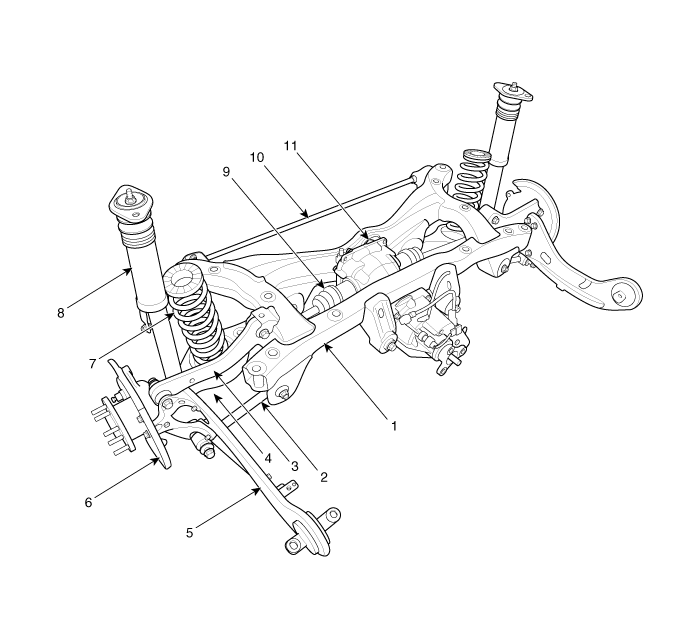

| 1. Sub frame 2. Assist arm 3. Upper arm 4. Lower arm 5. Trailing arm 6. Rear axle | 7. Coil spring 8. Shock absorber 9. Drive shaft 10. Stabilizer 11. Differential carrier |
| Components |

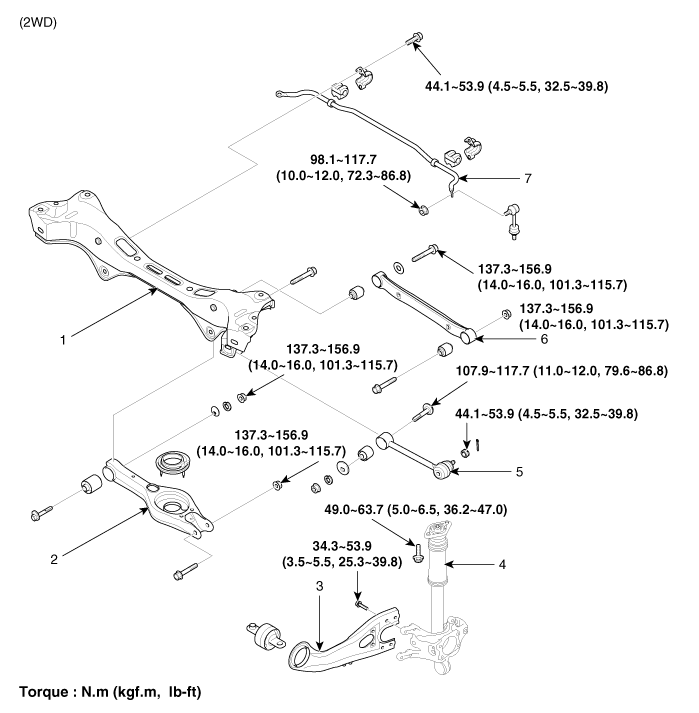

| 1. Sub frame 2. Lower arm 3. Trailing arm 4. Shock absorber | 5. Assist arm 6. Upper arm 7. Stabilizer bar |

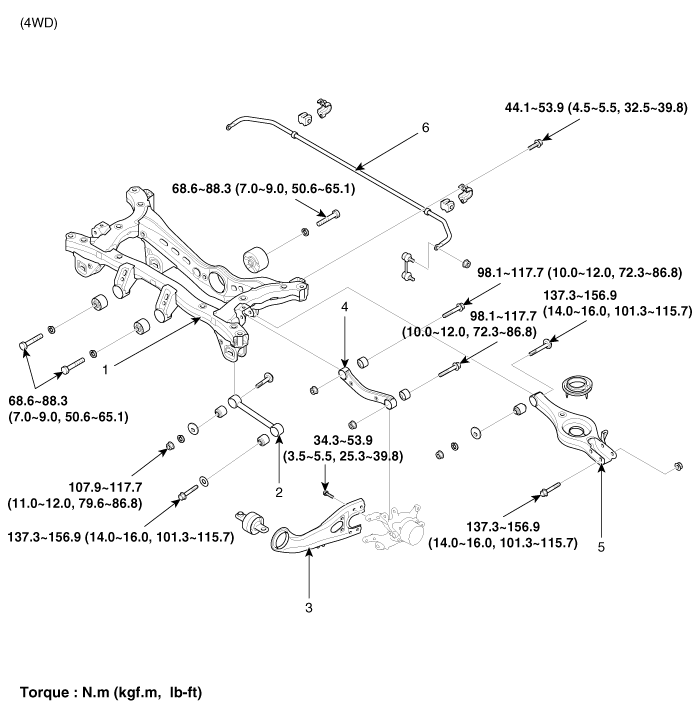

| 1. Sub frame 2. Assist arm 3. Trailing arm | 4. Upper arm 5. Lower arm 6. Stabilizer bar |
Rear Shock Absorber: Components and Components Location
Components
1. Self locking nut2. Bracket assembly3. Bumper rubber4. Dust cover5. Shock absorber
...
