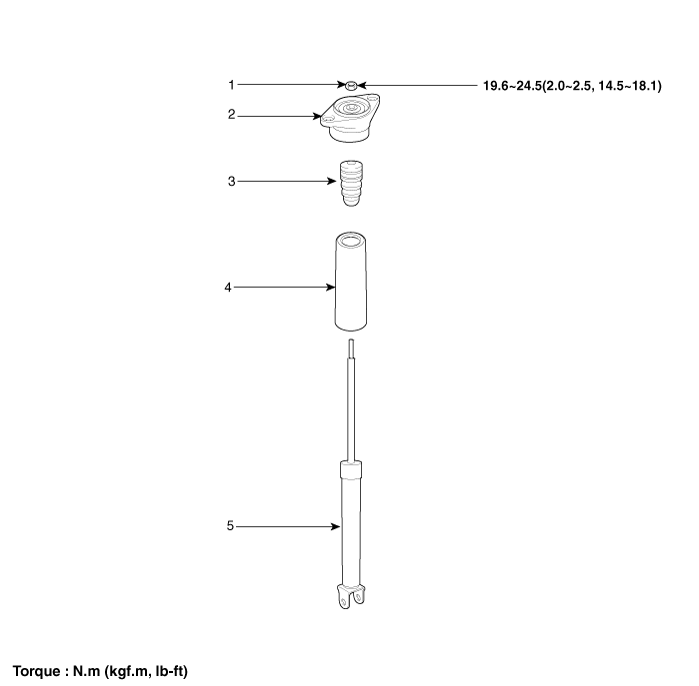

Components

1. Self locking nut
2. Bracket assembly
3. Bumper rubber
4. Dust cover
5. Shock absorber

Components and Components Location
Components Location 1. Sub frame2. Assist arm3. Upper arm4. Lower arm5. Trailing arm6. Rear axle7. Coil spring8. Shock absorber9. Drive shaft10. Stabilizer11. Differential carrier Components ...

Rear Shock Absorber: Repair procedures
Replacement 1. Remove the rear wheel & tire. Tightening torque : 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to damage to the hub bol ...
