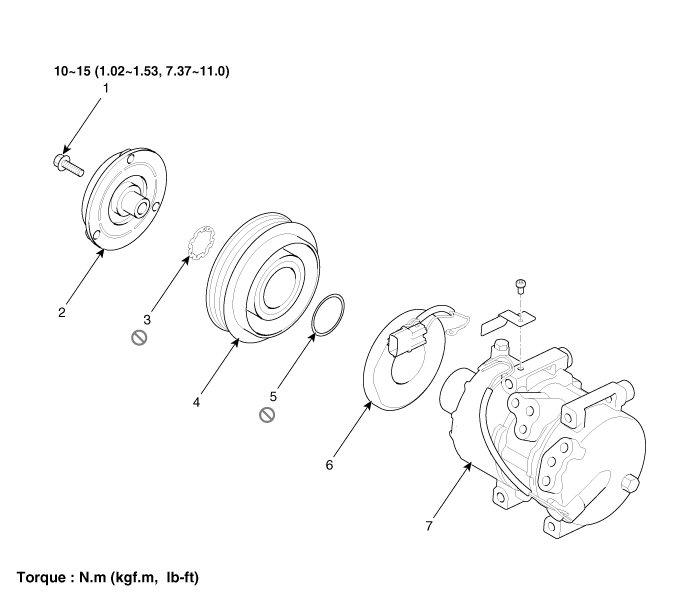

Components |
1. Bolt 2. Disc & Hub Assembly 3. Retainer Ring (Pulley) 4. Pulley | 5. Retainer Ring (Field coil) 6. Field Coil 7. Compressor Assembly |
Rear Cross Member: Repair procedures
Replacement
1.
Remove the rear wheel & tire.
Tightening torque :
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
Be careful not to damage to the hub bo ...
