Kia Sportage: CVVT Oil Temperature Sensor (OTS): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: CVVT Oil Temperature Sensor (OTS): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / CVVT Oil Temperature Sensor (OTS): Schematic Diagrams

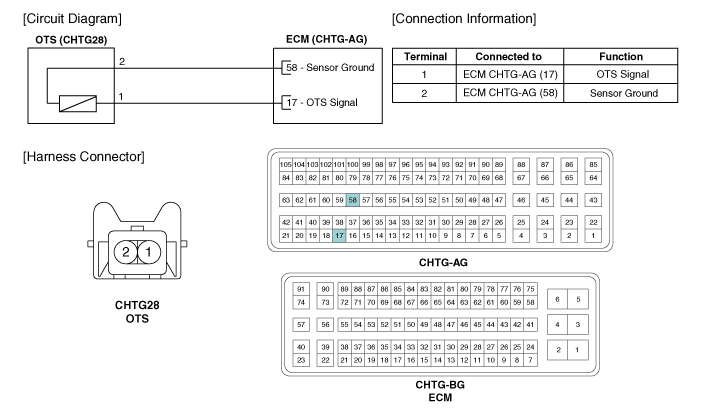

Circuit Diagram

CVVT Oil Temperature Sensor (OTS): Specifications
Specification Temperature [°C(°F)]Resistance (k?)-40(-40)52.15-20(-4)16.520(32)6.020(68)2.4540(104)1.1160(140)0.5480(176)0.29 ...

CVVT Oil Temperature Sensor (OTS): Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OTS connector. 3. Remove the OTS. 4. After immersing the thermistor of the sensor into engine coolant, measure resistance ...
