Kia Sportage: Cylinder Block: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Mechanical System / Cylinder Block / Cylinder Block: Components and Components Location
| Components |

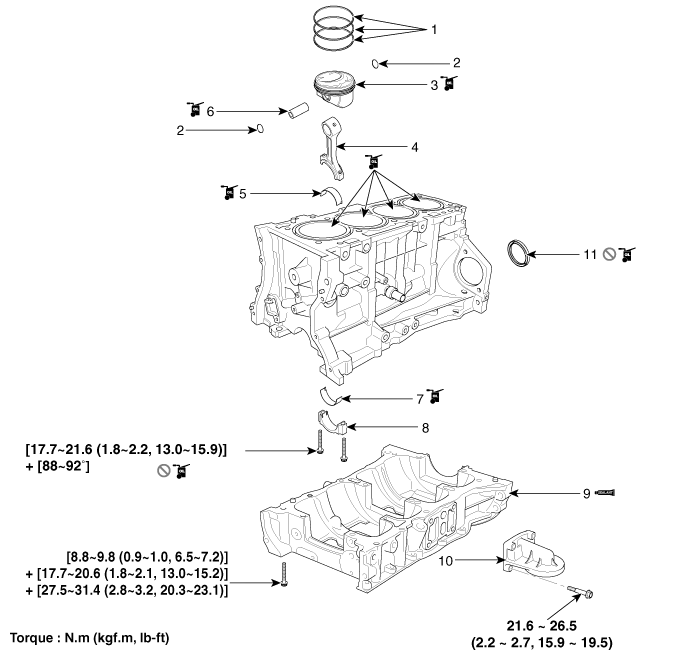

| 1. Piston ring 2. Snap ring 3. Piston 4. Connecting rod 5. Connecting rod upper bearing | 6. Piston pin 7. Connecting rod lower bearing 8. Connecting rod bearing cap 9. Ladder frame 10. Oil filter bracket 11. Crankshaft rear oil seal |

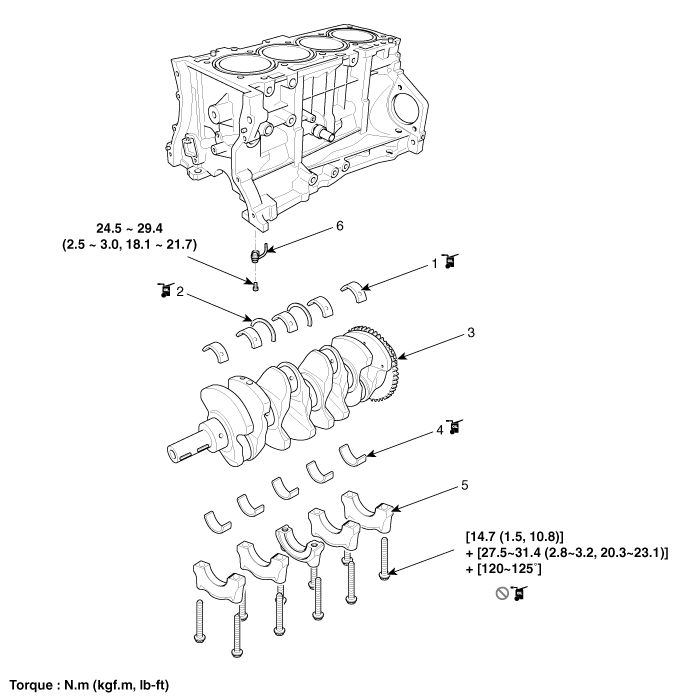

| 1. Crankshaft upper bearing 2. Thrust bearing 3. Crankshaft | 4. Crankshaft lower bearing 5. Main bearing cap 6. Piston cooling oil jet |
Cylinder Block
...
Cylinder Block: Repair procedures
Disassembly
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damage, unplug the wiring connectors carefully while holding the connec ...
