Kia Sportage: Cylinder Head: Components and Components Location - Cylinder Head Assembly - Engine Mechanical System - Kia Sportage SL Service & Repair ManualKia Sportage: Cylinder Head: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head: Components and Components Location

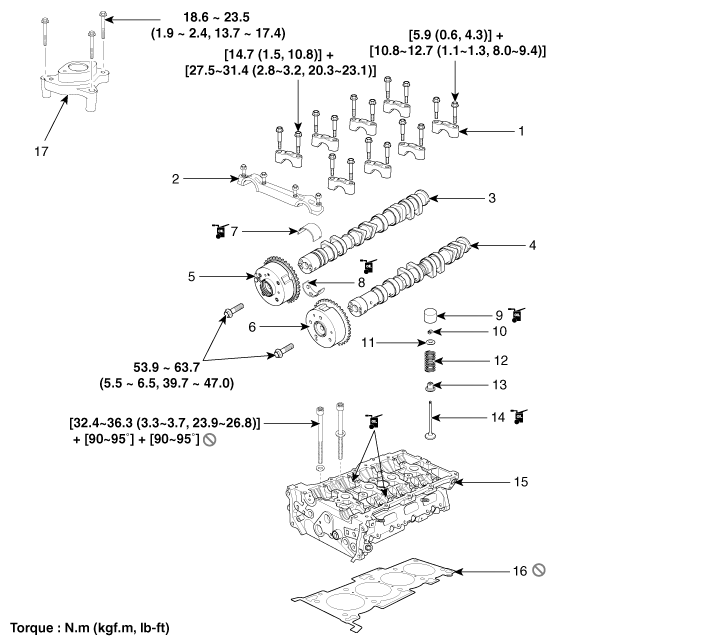

Components

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
7. Exhaust camshaft upper bearing
8. Exhaust camshaft lower bearing
9. MLA
10. Retainer lock
11. Retainer
12. Valve spring
13. Valve stem seal
14. Valve
15. Cylinder head
16. Cylinder head gasket
17. Fuel pump bracket
