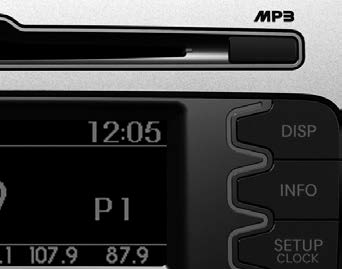

Kia Sportage: Digital clock
Whenever the battery terminals or related fuses are disconnected, you must reset the time.
For details, refer to the audio in the end of this section.
WARNING - Clock those may damage the hook. Setting Distraction
Do not adjust the clock while driving. Such adjustments may distract you for too long from the roadway and lead to a collision.
