Kia Sportage: Electric Waste Gate Actuator (EWGA): Components and Components Location - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Electric Waste Gate Actuator (EWGA): Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Electric Waste Gate Actuator (EWGA): Components and Components Location

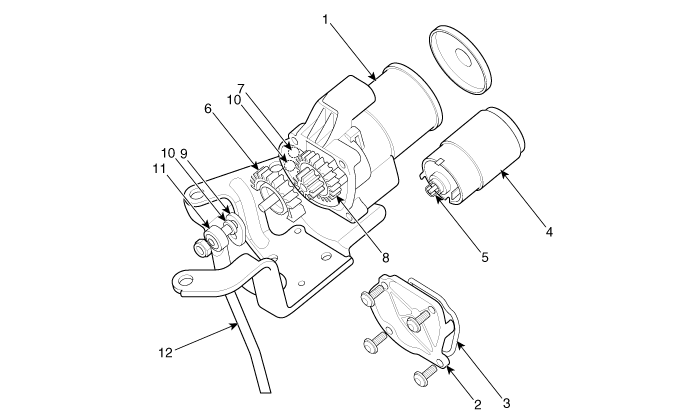

Components

1 . Housing
2 . Cover
3. Sealing Cover
4 . Motor
5. Pinion
6 . Shaft Gear
7 . PCB Assembly
8 . Middle Gear
9 . Lever
10 . Lever Pin
11 . Rod - End
12 . Rod
