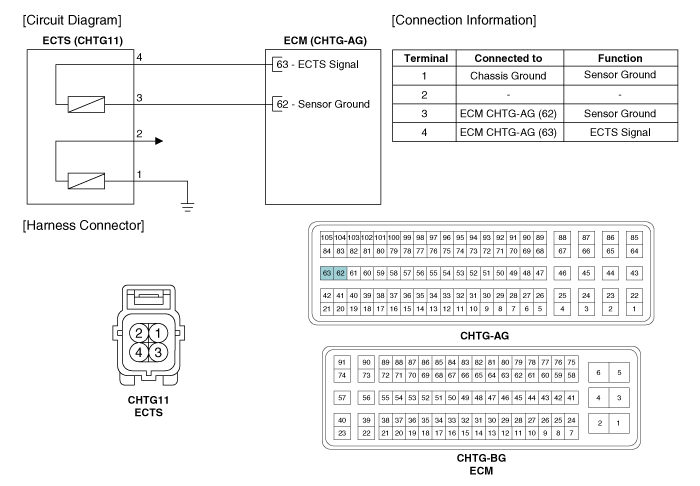

Kia Sportage: Engine Coolant Temperature Sensor (ECTS): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS): Schematic Diagrams

Engine Coolant Temperature Sensor (ECTS): Specifications

Specification TemperatureResistance (k?)°C°F-40-4048.14-20-414.13 ~ 16.830325.7920682.31 ~ 2.59401041.15601400.59801760.32 ...

Engine Coolant Temperature Sensor (ECTS): Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After immersing the thermistor of the sensor into engine coolant, measure resistance between the ECT ...
