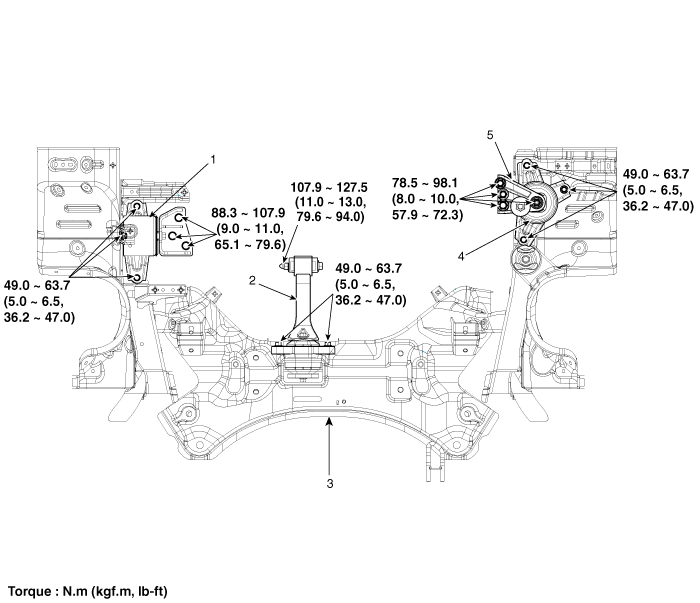

Components

1. Transaxle mounting bracket
2. Roll rod bracket
3. Sub frame
4. Engine mounting bracket
5. Engine mounting support bracket
