Kia Sportage: ETC (Electronic Throttle Control) System: Description and Operation
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System: Description and Operation
| Description |

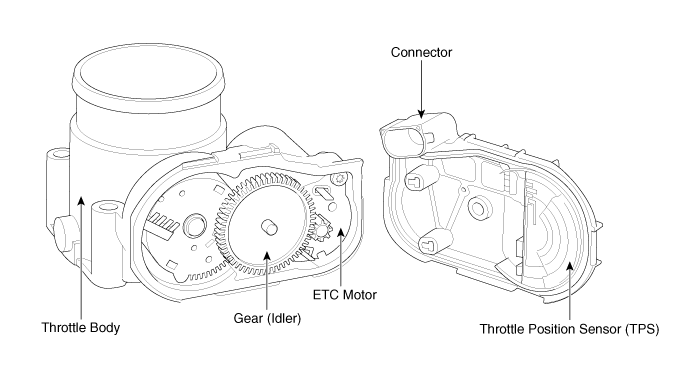

The Electronic Throttle Control (ETC) System consists of a
throttle body with an integrated control motor and throttle position
sensor (TPS). Instead of the traditional throttle cable, an Accelerator
Position Sensor (APS) is used to receive driver input. The ECM uses the
APS signal to calculate the target throttle angle; the position of the
throttle is then adjusted via ECM control of the ETC motor. The TPS
signal is used to provide feedback regarding throttle position to the
ECM. Using ETC, precise control over throttle position is possible; the
need for external cruise control modules/cables is eliminated.

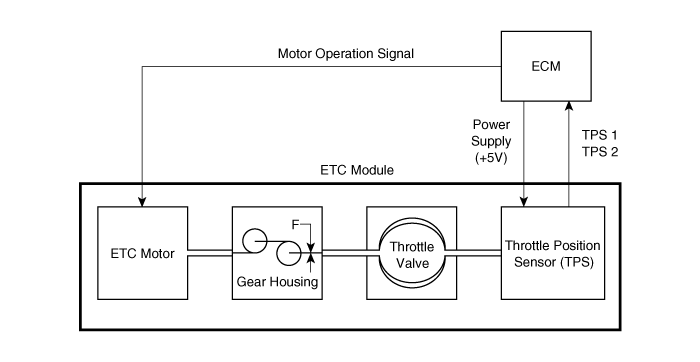

| Schematic Diagram |
Engine Control Module (ECM): Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Disconnect the ECM Connector (A).
3.
Remove the battery (Refer to "Intake And Exhaust System" in EM gr ...
ETC (Electronic Throttle Control) System: Troubleshooting
Fail-Safe Mode
ItemFail-SafeETC MotorThrottle valve stuck at 5°TPSTPS 1 faultECM looks at TPS2TPS 2 faultECM looks at TPS1TPS 1,2 faultThrottle valve stuck at 5°APSAPS 1 faultECM looks at APS 2 ...
