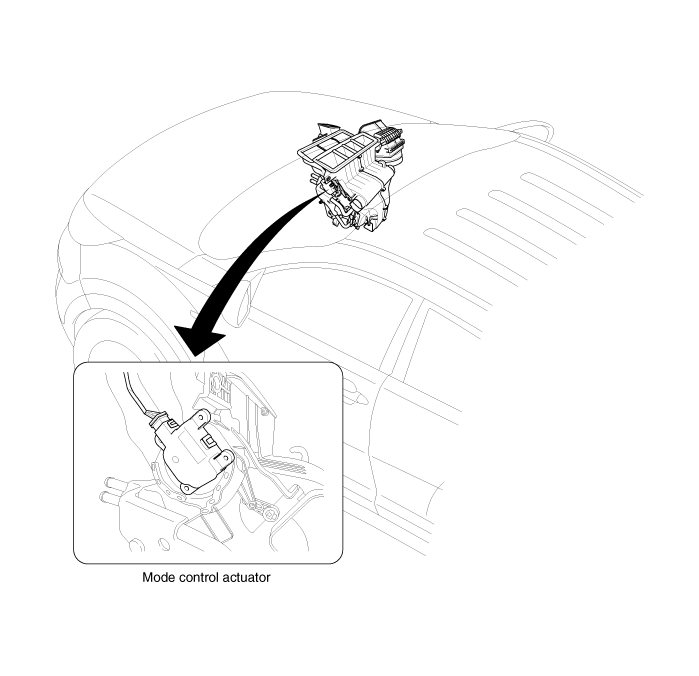

Kia Sportage: Mode Control Actuator: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Heating,Ventilation, Air Conditioning / Heater / Mode Control Actuator: Components and Components Location

Temperature Control Actuator: Repair procedures

Inspection 1. Ignition "OFF" 2. Disconnect the connector of temperature control actuator. 3. Verify that the temperature control actuator operates to the hot position when connecting 12V ...

Mode Control Actuator: Description and Operation

Description The mode control actuator is located at the heater unit. It adjusts position of mode door by operating mode control actuator based on signal of A/C control unit. Pressing mode select ...
