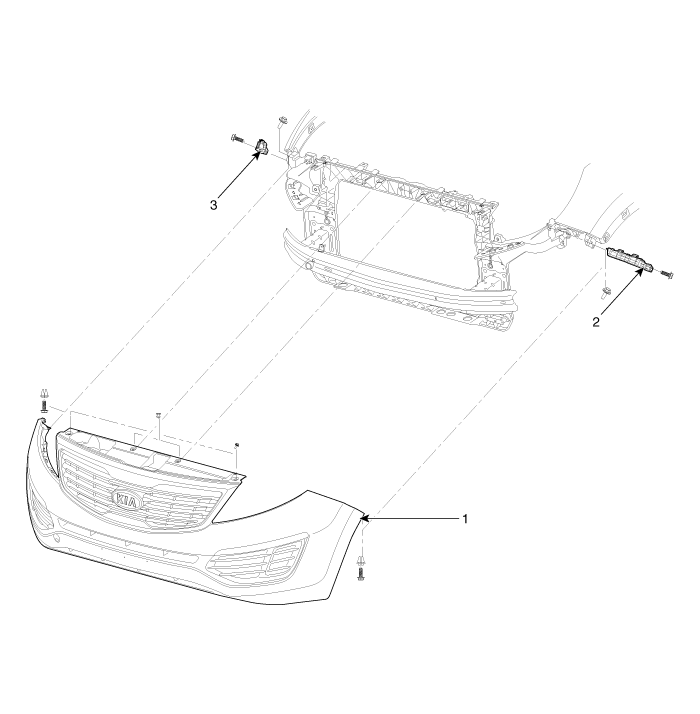

Components

1. Front bumper cover
2. Front bumper side bracket [LH]
3. Front bumper side bracket [RH]
