Kia Sportage: Hands Free Switch: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Hands Free System / Hands Free Switch: Components and Components Location

Description and Operation

Function Bluetooth Audio System Bluetooth You can use a Bluetooth device in your car to make a hands-free phone call or to stream music onto your in-car speakers (via this Head Unit). This ...

Hands Free Switch: Repair procedures

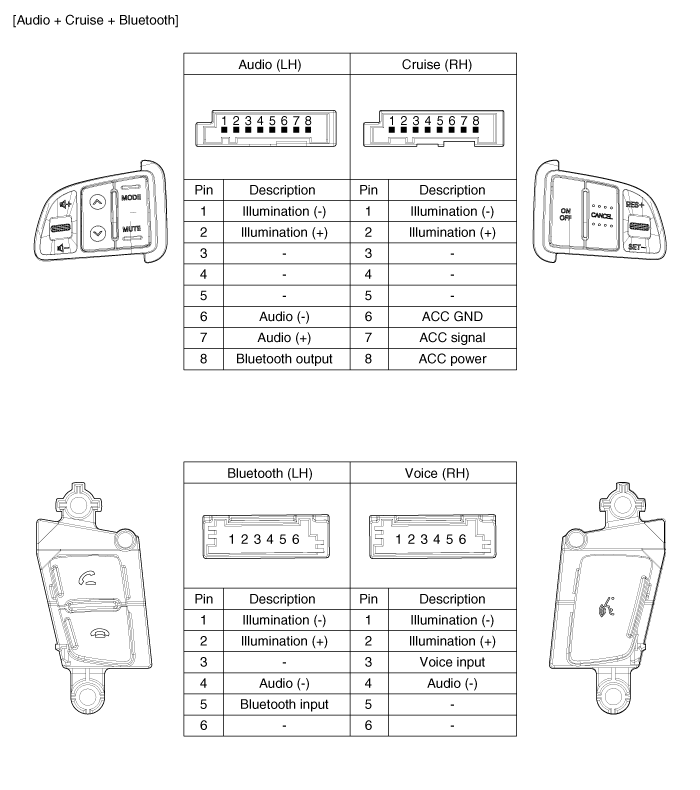

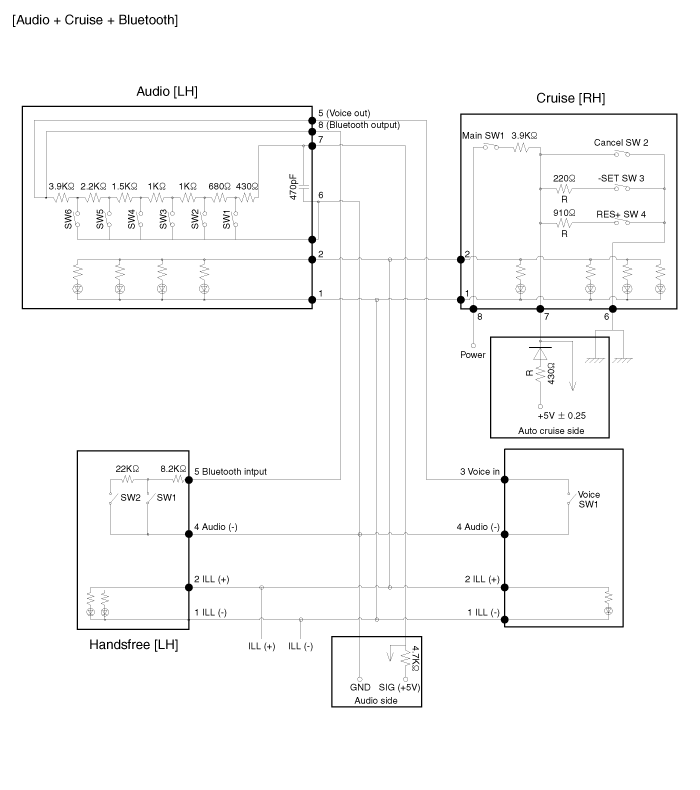

Inspection 1. Check the handsfree remote control switch for resistance between No.3 and No.4 terminals in each switch position. [Call + Hang Up] SwitchConnector terminalResistance (±5%) Outpu ...
