Kia Sportage: High beam operation

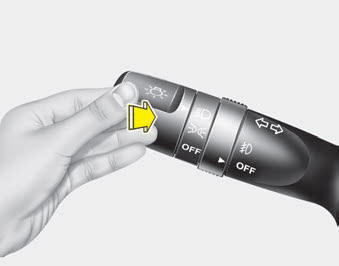

To turn on the high beam headlights, push the lever away from you. Pull it back for low beams.
The high beam indicator will light when the headlight high beams are switched on.
To prevent the battery from being discharged, do not leave the lights on for a prolonged time while the engine is not running.
WARNING - High beams
Do not use high beam when there are other vehicles. Using high beam could obstruct the other driver’s vision.

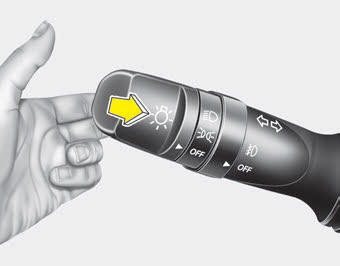

To flash the headlights, pull the lever towards you. It will return to the normal (low beam) position when released. The headlight switch does not need to be on to use this flashing feature.
Auto light position
When the light switch is in the AUTO light position, the taillights and headlights
will turn ON or OFF automatically depending on the amount of light outside the vehicle.
Never place anything ...
Turn signals and lane change signals
The ignition switch must be on for the turn signals to function. To turn on the
turn signals, move the lever up or down (A). The green arrow indicators on the instrument
panel indicate which tur ...
Other Information:
4WD ECU: Schematic Diagrams
Circuit Diagram
4WD ECU Connector
PinFunction1Oil pressure motor A2Oil pressure motor B3Lock mode switch4-5Input sensor signal(+)6-7CAN communication line (High)8CAN communication line (Low)9- ...
Transaxle Control Module (TCM): Schematic Diagrams
1. TCM connector and terminal function
2. TCM Terminal Function
Connector [A]
PinDescriptionPinDescription1?54?2Line pressure control solenoid valve (LINE_VFS)55?3Torque converter control solen ...
