Kia Sportage: Instrument panel fuse panel

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Maintenance / Fuses / Instrument panel fuse panel

Fuse/relay panel description

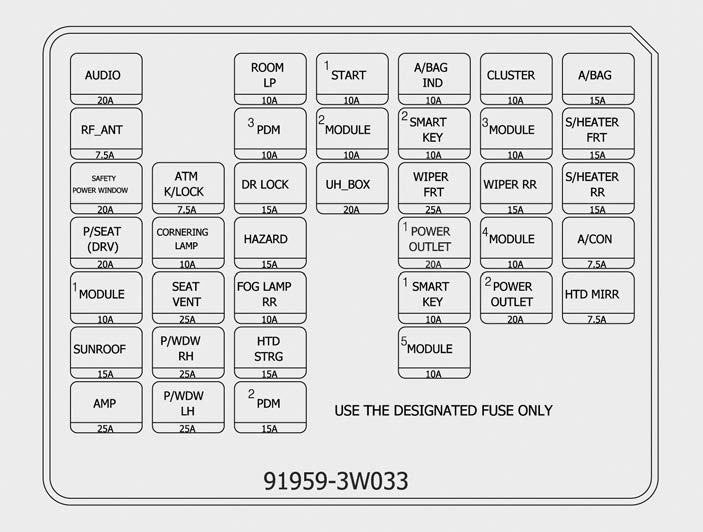

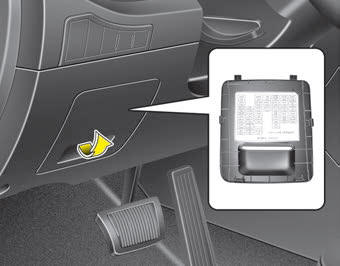

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity. ✽ NOTICE Not all fuse panel descriptions in this manual may be applicable to y ...

Engine compartment fuse panel

✽ NOTICE The actual fuse/relay panel label may differ depending on equipment/ options. ...
