Components |

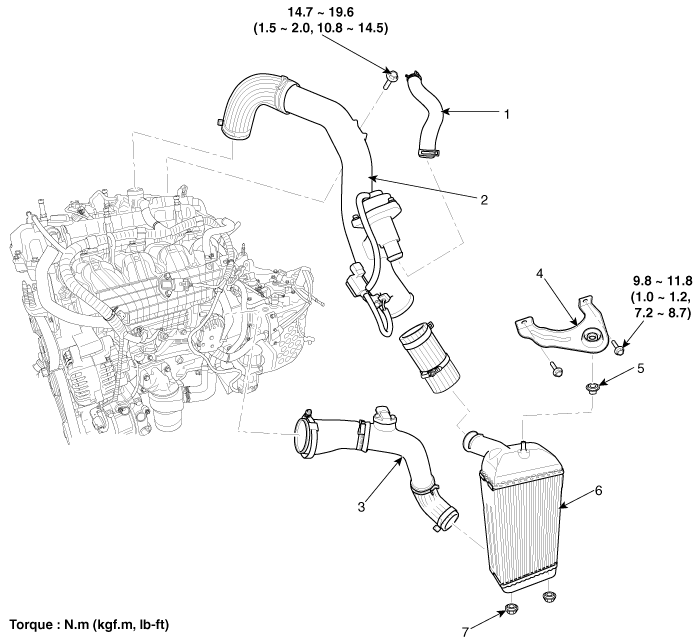

1. Recirculation hose 2. Intercooler inlet hose & pipe assembly 3. Intercooler outlet hose & pipe assembly | 4. Intercooler mounting bracket 5. Intercooler upper mounting insulator 6. Intercooler 7. Intercooler lower mounting insulator |
Line Pressure Control Solenoid Valve: Schematic Diagrams
Circuit Diagram
...
Input Speed Sensor: Specifications
Specifications
? Type: Hall effect sensor
Operation condition (°C)°F((-)40~150)) -40~302Air gap (mm)in.(0.95~1.65) 0.0374~0.0649Output voltage(V)High1.18 ~ 1.68Low0.59 ~ 0.84
...
