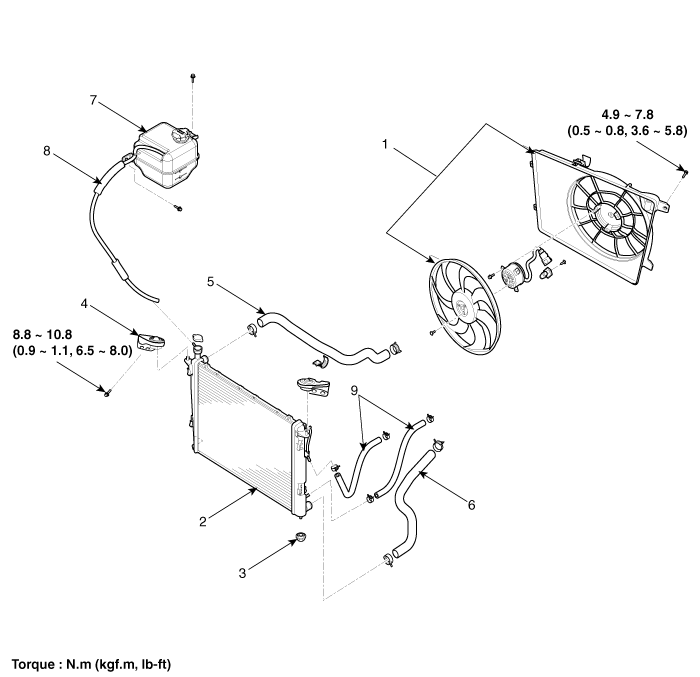

Components

1. Cooling fan assembly
2. Radiator assembly
3. Mounting insulator
4. Radiator mounting bracket
5. Radiator upper hose
6. Radiator lower hose
7. Reservoir tank
8. Over flow hose
9. ATF cooler hoses
